87346-5

Active

TE Connectivity AMP Connectors

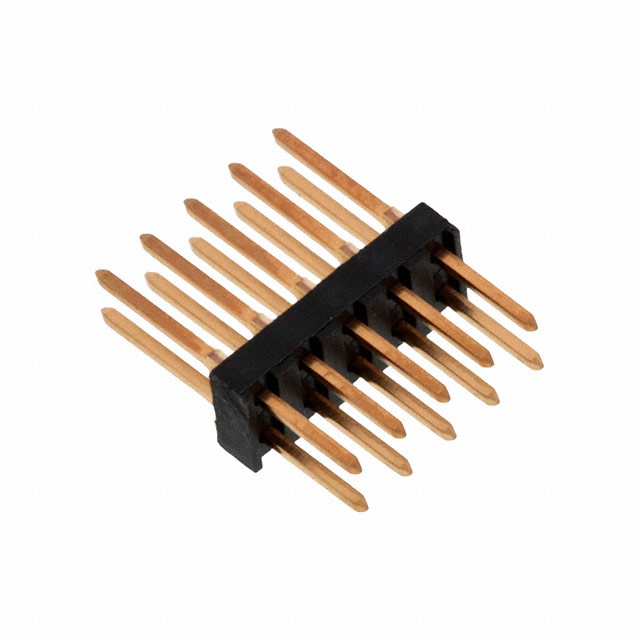

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

87346-5

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87346-5	87346 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	0.22 in	0.22 in
Contact Length - Post	5.58 mm	5.58 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Through Hole	Through Hole
Number of Positions	10	10 - 80
Number of Positions Loaded	All	All
Number of Rows	2	2
Overall Contact Length	0.628 in	0.628 in
Overall Contact Length	15.95 mm	15.95 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87346 Series

CONN HEADER VERT 40POS 2.54MM

Part	Mounting Type	Insulation Material	Insulation Height	Insulation Height	Number of Rows	Connector Type	Style	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Insulation Color	Fastening Type	Contact Shape	Termination	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Shrouding	Contact Finish - Mating	Number of Positions
TE Connectivity AMP Connectors 87346-6	Through Hole	Glass Filled, Nylon, Polyamide (PA)	0.09 in	2.29 mm	2	Header	Board to Board, Cable	0.318 "	8.08 mm	Male Pin	Black	Push-Pull	Square	Solder	0.22 in	5.58 mm	15 µin	0.38 µm	0.628 in	15.95 mm	All	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	Unshrouded	Gold	40
TE Connectivity AMP Connectors 4-87346-0	Through Hole	Glass Filled, Nylon, Polyamide (PA)	0.09 in	2.29 mm	2	Header	Board to Board, Cable	0.318 "	8.08 mm	Male Pin	Black	Push-Pull	Square	Solder	0.22 in	5.58 mm	15 µin	0.38 µm	0.628 in	15.95 mm	All	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	Unshrouded	Gold	80
TE Connectivity AMP Connectors 87346-5	Through Hole	Glass Filled, Nylon, Polyamide (PA)	0.09 in	2.29 mm	2	Header	Board to Board, Cable	0.318 "	8.08 mm	Male Pin	Black	Push-Pull	Square	Solder	0.22 in	5.58 mm	15 µin	0.38 µm	0.628 in	15.95 mm	All	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	Unshrouded	Gold	10
TE Connectivity AMP Connectors 87346-4	Through Hole	Glass Filled, Nylon, Polyamide (PA)	0.09 in	2.29 mm	2	Header	Board to Board, Cable	0.318 "	8.08 mm	Male Pin	Black	Push-Pull	Square	Solder	0.22 in	5.58 mm	15 µin	0.38 µm	0.628 in	15.95 mm	All	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	Unshrouded	Gold	50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.77
		10	$ 2.47
		200	$ 2.22

Description

General part information

87346 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
