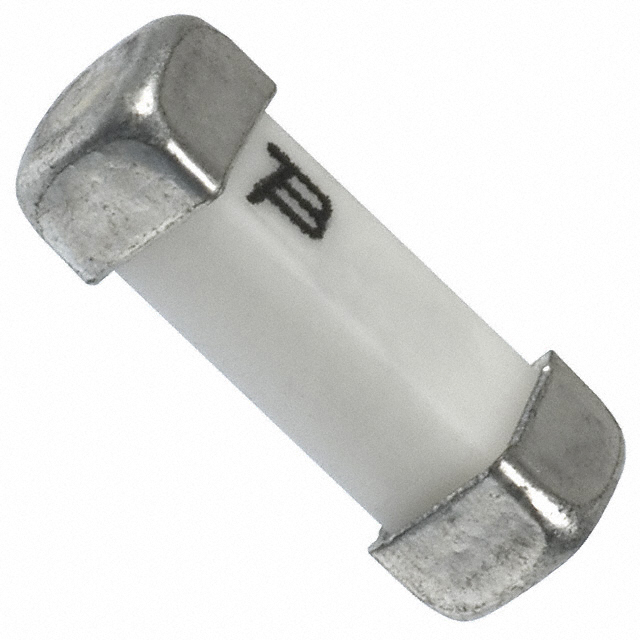

B1250T
ObsoleteBourns Inc.
FUSE BRD MNT 1.25A 600VAC 2SMD
B1250T
ObsoleteBourns Inc.
FUSE BRD MNT 1.25A 600VAC 2SMD
Description
General part information
B1250T
1.25A 600 VAC Fuse Board Mount Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | B1250T |
|---|---|
| Applications | Telecom |
| Approval Agency | UR |
| Current Rating | 1.25 A |
| DC Cold Resistance | 0.075 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 17 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, Square End Block |
| Size / Dimension Height | 0.12 in |
| Size / Dimension Length | 0.38 in |
| Size / Dimension Width | 0.12 in |
| Voltage Rating - AC | 600 VAC |
