1-1102292-6
ActiveTE Connectivity AMP Connectors

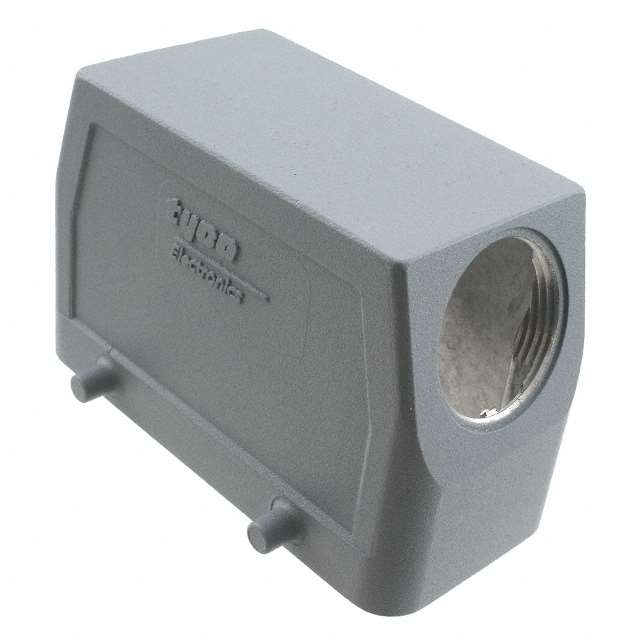

CONN HOOD SIDE ENTRY SZ6 PG21
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1102292-6
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ6 PG21
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1102292-6 | 1102292 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray, Black |
| Housing Finish | Powder Coated | Powder Coated, Aluminum Oxide |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom, Locking Clip (1) on Base Bottom, Locking Clip (2) on Hood |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 80 C |
| Size | 6 | 6 |
| Size / Dimension [x] | 93.5 mm | 93.5 mm |
| Size / Dimension [x] | 3.681 " | 3.681 " |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 60 mm | 60 mm |
| Size / Dimension [z] | 2.362 " | 2.362 " |
| Style | Side Entry | Side Entry |
| Thread Size | PG21 | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.30 | |
| 10 | $ 21.70 | |||
1102292 Series
CONN HOOD SIDE ENTRY SZ6 PG21
| Part | Size | Connector Type | Ingress Protection | Thread Size | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Lock Location | Housing Finish | Housing Material | Housing Color | Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102292-6 | 6 | Hood | IP65 - Dust Tight, Water Resistant | PG21 | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Locking Clip (2) on Base Bottom | Powder Coated | Aluminum Alloy, Die Cast | Gray | Side Entry | ||
TE Connectivity AMP Connectors 2-1102292-7 | 6 | Hood | IP65 - Dust Tight, Water Resistant | PG21 | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Locking Clip (1) on Base Bottom | Aluminum Oxide | Aluminum Alloy, Die Cast | Black | Side Entry | -40 °C | 80 C |
TE Connectivity AMP Connectors 1-1102292-1 | 6 | Hood | IP65 - Dust Tight, Water Resistant | PG21 | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Locking Clip (2) on Hood | Aluminum | Gray | Side Entry |
Description
General part information
1102292 Series
Hood Connector Side Entry PG21 6 IP65 - Dust Tight, Water Resistant
