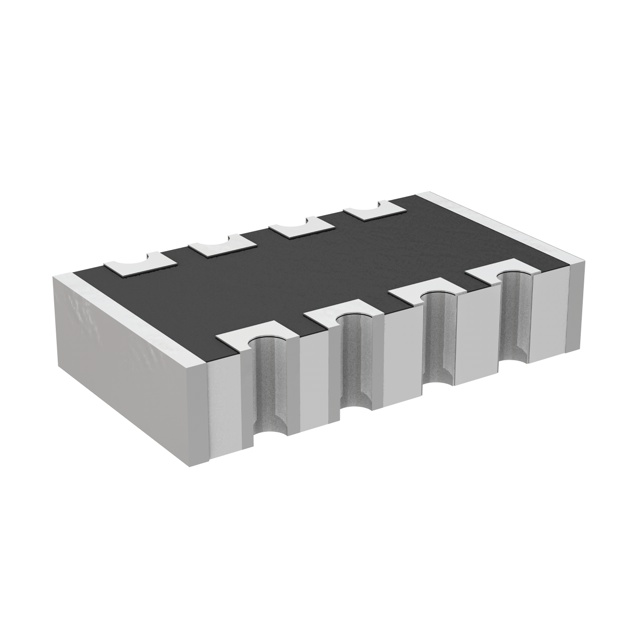

TC164-JR-07820KL

Active

YAGEO

RES ARRAY 4 RES 820K OHM 1206

Deep-Dive with AI

DocumentsChip Resistor Packing Chip Resistors Mounting +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC164-JR-07820KL	TC164-JR Series

Applications	SDRAM, DDRAM	SDRAM, DDRAM
Circuit Type	Isolated	Isolated
Grade	Automotive	Automotive
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Mounting Type	Surface Mount	Surface Mount
Number of Pins	8	8
Number of Resistors	4	4
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric), Concave, Long Side Terminals	1206 (3216 Metric), Concave, Long Side Terminals
Qualification	AEC-Q200	AEC-Q200
Resistance (Ohms)	820 kOhms	1 - 820 Ohms
Resistance (Ohms)	-	3k, 33k, 120k, 240k, 620k, 22k, 30k, 15k, 160k
Size / Dimension [x]	0.126 "	0.126 "
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	-	1206
Temperature Coefficient	200 ppm/°C	200 ppm/°C
Tolerance	5 %	5 %

TC164-JR Series

RES THICK FILM ARRAY 330 OHM 5% ±200PPM/°C ISOL EPOXY 8-PIN 1206(4 X 0603) CONCAVE SMD AUTOMOTIVE AEC-Q200 T/R

Part	Circuit Type	Mounting Type	Number of Pins	Number of Resistors	Package / Case	Resistance (Ohms)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Applications	Grade	Qualification	Resistance (Ohms)
YAGEO TC164-JR-07330RL	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals	330 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200
YAGEO TC164-JR-076K8L	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals	6.8 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200
YAGEO TC164-JR-07100KL	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals	100 kOhms	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200
YAGEO TC164-JR-073KL	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals		0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200	3k
YAGEO TC164-JR-071K2L	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals	1.2 kOhms	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200
YAGEO TC164-JR-07620RL	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals	620 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200
YAGEO TC164-JR-0733KL	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals		0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200	33k
YAGEO TC164-JR-073K3L	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals	3.3 kOhms	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200
YAGEO TC164-JR-077K5L	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals	7.5 kOhms	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200
YAGEO TC164-JR-072K2L	Isolated	Surface Mount	8	4	1206 (3216 Metric), Concave, Long Side Terminals	2.2 kOhms	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	5 %	0.7 mm	0.028 in	200 ppm/°C	DDRAM, SDRAM	Automotive	AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.02

Description

General part information

TC164-JR Series

820k Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Concave, Long Side Terminals

TC164-JR-07820KL
