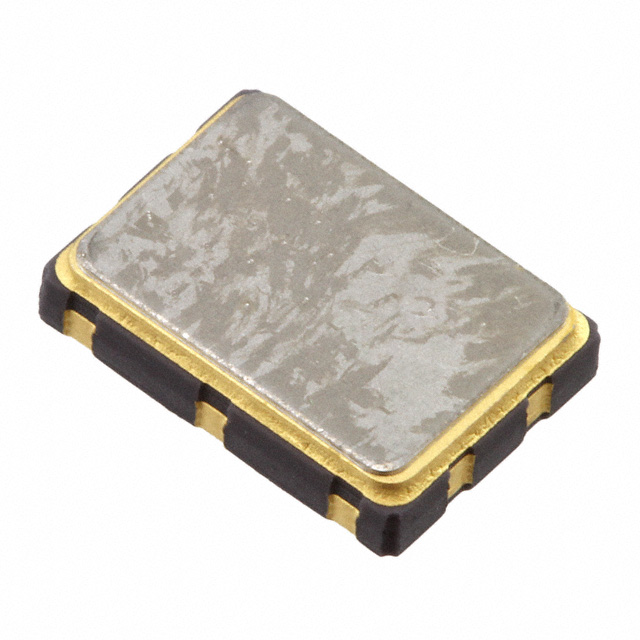

BA-25.000MBE-T
ActiveTXC CORPORATION
OSCILLATOR, 25 MHZ, 50 PPM, SMD, 7MM X 5MM, LVPECL, 3.3 V, BA SERIES
BA-25.000MBE-T
ActiveTXC CORPORATION
OSCILLATOR, 25 MHZ, 50 PPM, SMD, 7MM X 5MM, LVPECL, 3.3 V, BA SERIES
Description
General part information
BA-25.000MBE-T
25 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | BA-25.000MBE-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 80 mA |
| Frequency | 25 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.059 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVPECL |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
