NRF2401AG-REEL7

Active

Nordic Semiconductor ASA

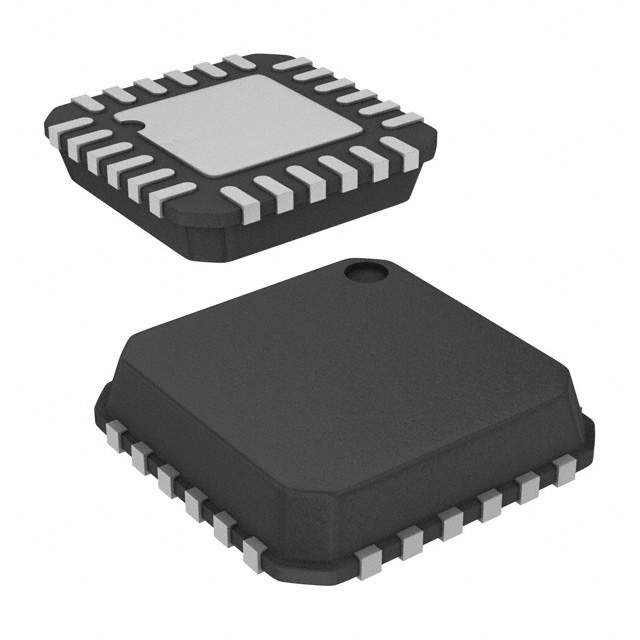

IC RF TXRX ISM>1GHZ 24QFN

Search across all available documentation for this part.

Active

Nordic Semiconductor ASA

IC RF TXRX ISM>1GHZ 24QFN

Technical Specifications

Parameters and characteristics commom to parts in this series

IC RF TXRX ISM>1GHZ 24QFN

Part	Package / Case	RF Family/Standard	Mounting Type	Current - Receiving [Max]	Current - Receiving [Min]	Supplier Device Package	Data Rate (Max)	Sensitivity	Modulation	Frequency	Type	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Transmitting [Min]	Current - Transmitting [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Nordic Semiconductor ASA NRF2401AG-REEL	24-VQFN Exposed Pad	General ISM > 1GHz	Surface Mount	25 mA	18 mA	24-QFN (5x5)	1 Mbps	-93 dBm	GFSK	2.4 GHz	TxRx Only	SPI	3.6 V	1.9 V	8.8 mA	13 mA	85 °C	-40 °C
Nordic Semiconductor ASA NRF2401AG	24-VQFN Exposed Pad	General ISM > 1GHz	Surface Mount	25 mA	18 mA	24-QFN (5x5)	1 Mbps	-93 dBm	GFSK	2.4 GHz	TxRx Only	SPI	3.6 V	1.9 V	8.8 mA	13 mA	85 °C	-40 °C
Nordic Semiconductor ASA NRF2401AG-REEL7	24-VQFN Exposed Pad	General ISM > 1GHz	Surface Mount	25 mA	18 mA	24-QFN (5x5)	1 Mbps	-93 dBm	GFSK	2.4 GHz	TxRx Only	SPI	3.6 V	1.9 V	8.8 mA	13 mA	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 2.10

General part information

IC RF TxRx Only General ISM > 1GHz 2.4GHz 24-VQFN Exposed Pad
