Description
General part information

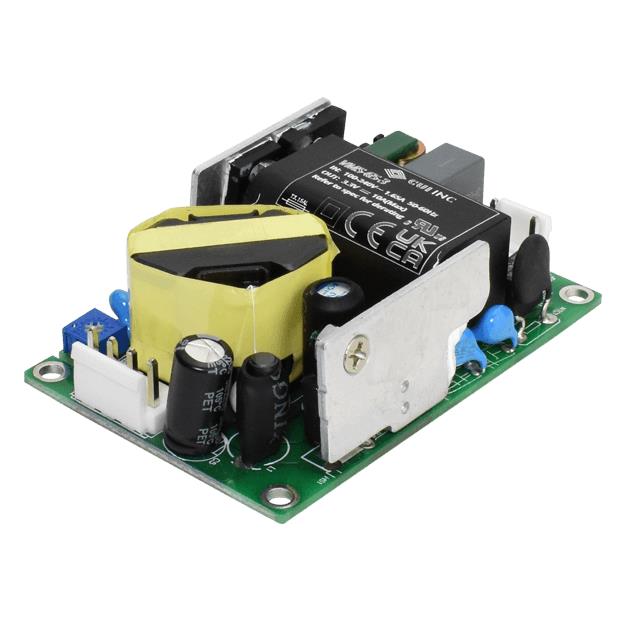

VMS-65-12
Open Frame AC DC Converters 2 Output 12V 12V 80 ~ 264 VAC, 100 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VMS-65-12 |
|---|---|
| Applications | Medical |
| Approval Agency | CE, UKCA, cURus |
| Current - Output 1 | 5.42 A |
| Efficiency | 89 % |
| Features | Universal Input, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 65 W |
| Size / Dimension Height | 1.04 in |
| Size / Dimension Length | 3 in |
| Size / Dimension Width | 2 in |
| Standard Number | 60601-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 80 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 100 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 12 V |
