PE44705
ActivePasternack

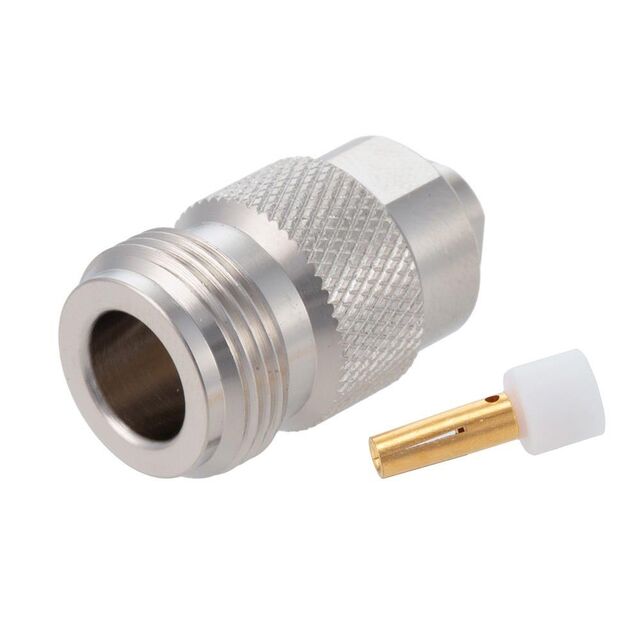

N FEMALE CONNECTOR SOLDER ATTACH
PE44705
ActivePasternack
N FEMALE CONNECTOR SOLDER ATTACH
Description
General part information
PE44705
N Type Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44705 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-402 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Solder |
