9L28310 010100

Active

Belden Inc.

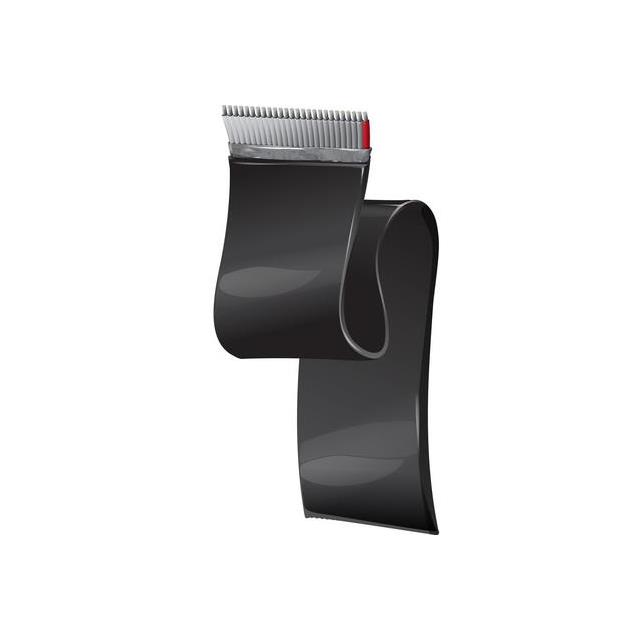

CBL RIBN 10COND 0.05 BLACK 100'

Search across all available documentation for this part.

Active

Belden Inc.

CBL RIBN 10COND 0.05 BLACK 100'

Technical Specifications

Parameters and characteristics for this part

Part	Number of Conductors	Jacket (Insulation) Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width	Ribbon Width	Wire Gauge	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Thickness	Ribbon Thickness	Pitch [x]	Pitch [x]	Length [x]	Length [x]	Shielding	Insulation Resistance	Cable Type	Conductor Material	Ratings	First Conductor Mark	Jacket Color
Belden Inc. 9L28310 010100	10	Poly-Vinyl Chloride (PVC)	1 A	-20 C	105 ░C	0.57 in	14.48 mm	28 AWG	300 V	7	36 AWG	0.115 in	2.92 mm	0.05 in	1.27 mm	100 ft	30.48 m	Shielded	10 GOhm	Flat Cable	Copper Tinned	UL Style 2651	Red	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Flat Ribbon Cable Black 10 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
