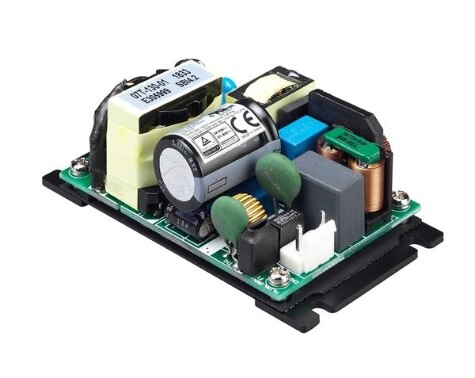

CFM130M360-B
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 36V 101W
Deep-Dive with AI
Search across all available documentation for this part.
CFM130M360-B
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 36V 101W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM130M360-B |
|---|---|
| Applications | Household Appliances, Medical |
| Approval Agency | CE, cURus, FCC, TUV |
| Current - Output 1 | 2.8 A |
| Efficiency | 94 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 130 W |
| Power (Watts) | 101 W |
| Size / Dimension [x] | 3.6 in |
| Size / Dimension [x] | 91.4 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 33.1 mm |
| Size / Dimension [z] | 1.3 " |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 73.00 | |
| 250 | $ 36.16 | |||
Description
General part information
CFM130M360-B
Open Frame AC DC Converters 1 Output 36V 80 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
