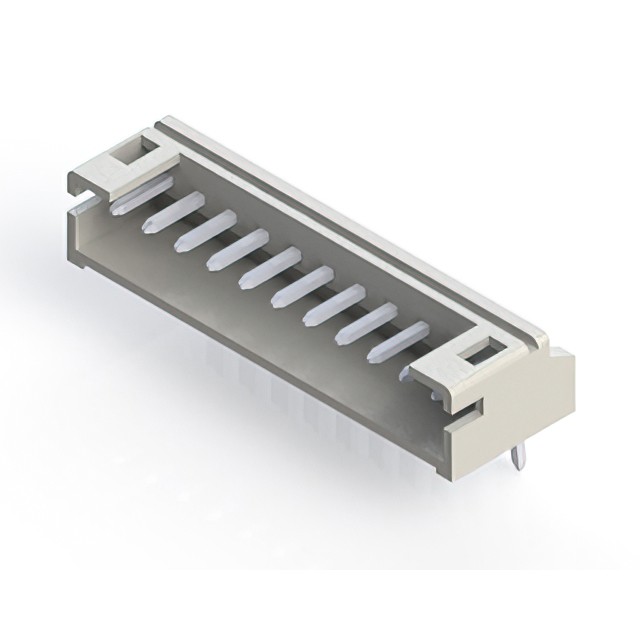

140-511-415-000
ActiveEDAC Inc.
2.0MM PITCH CONNECTOR WITH 11 P.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
140-511-415-000
ActiveEDAC Inc.
2.0MM PITCH CONNECTOR WITH 11 P.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 140-511-415-000 | 140-511 Series |
|---|---|---|
| Color | - | Natural |
| Connector Type | Header | Header, Receptacle |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Post | - | 0.134 in |
| Contact Length - Post | - | 3.4 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Termination | - | Crimp |
| Contact Type | Male Pin | Male Pin, Female Socket |
| Current Rating (Amps) | 2 A | 2 A |
| Fastening Type | Detent Lock | Detent Lock |
| Features | - | Solder Retention, Polarizing Key |
| Insulation Color | Natural | Natural |
| Insulation Height | 0.197 in | 0.185 - 0.24 in |
| Insulation Height | 5 mm | 4.7 - 6.1 mm |
| Insulation Height | - | 5.51 mm |
| Insulation Height | - | 0.217 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Surface Mount, Through Hole, Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 11 | 11 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 85 - 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 - -25 °C |
| Pitch | - | 0.079 in |
| Pitch | - | 2 mm |
| Pitch - Mating [x] | 0.079 in | 0.079 in |
| Pitch - Mating [x] | 2 mm | 2 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder, Solder |
| Voltage Rating | 100 VAC | 100 VAC |
140-511 Series
2.0MM PITCH CONNECTOR WITH 11 P.
| Part | Mounting Type | Insulation Material | Pitch - Mating [x] | Pitch - Mating [x] | Number of Rows | Termination | Style | Number of Positions | Shrouding | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Type | Insulation Color | Fastening Type | Current Rating (Amps) | Material Flammability Rating | Voltage Rating | Connector Type | Number of Positions Loaded | Contact Finish - Post | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [custom] | Insulation Height [custom] | Features | Note | Pitch [x] | Pitch [x] | Color | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. 140-511-415-000 | Through Hole, Right Angle | Polyamide (PA66), Nylon 6/6 | 0.079 in | 2 mm | 1 | Kinked Pin, Solder | Board to Cable/Wire | 11 | Shrouded - 4 Wall | Brass | -40 °C | 105 ░C | 0.197 in | 5 mm | Male Pin | Natural | Detent Lock | 2 A | UL94 V-0 | 100 VAC | Header | All | Tin | Square | ||||||||||
EDAC Inc. 140-511-415-100 | Through Hole, Right Angle | Polyamide (PA66), Nylon 6/6 | 0.079 in | 2 mm | 1 | Solder | Board to Cable/Wire | 11 | Shrouded - 4 Wall | Brass | -40 °C | 105 ░C | 0.185 in | 4.7 mm | Male Pin | Natural | Detent Lock | 2 A | UL94 V-0 | 100 VAC | Header | All | Tin | Square | 0.134 in | 3.4 mm | ||||||||
EDAC Inc. 140-511-417-011 | Surface Mount | Liquid Crystal Polymer (LCP) | 0.079 in | 2 mm | 1 | Solder | Board to Cable/Wire | 11 | Shrouded - 4 Wall | Brass | -40 °C | 105 ░C | Male Pin | Natural | Detent Lock | 2 A | UL94 V-0 | 100 VAC | Header | All | Tin | Square | 5.51 mm | 0.217 in | Solder Retention | |||||||||
EDAC Inc. 140-511-415-101 | Through Hole | Polyamide (PA66), Nylon 6/6 | 0.079 in | 2 mm | 1 | Solder | Board to Cable/Wire | 11 | Shrouded - 4 Wall | Brass | -40 °C | 105 ░C | 0.24 in | 6.1 mm | Male Pin | Natural | Detent Lock | 2 A | UL94 V-0 | 100 VAC | Header | All | Tin | Square | ||||||||||
EDAC Inc. 140-511-210-011 | Free Hanging (In-Line) | Polyamide (PA66), Nylon 6/6 | 1 | 11 | -25 °C | 85 °C | Female Socket | Detent Lock | Receptacle | Polarizing Key | Contacts Not Included | 0.079 in | 2 mm | Natural | Crimp | |||||||||||||||||||
EDAC Inc. 140-511-415-001 | Through Hole | Polyamide (PA66), Nylon 6/6 | 0.079 in | 2 mm | 1 | Kinked Pin, Solder | Board to Cable/Wire | 11 | Shrouded - 4 Wall | Brass | -40 °C | 105 ░C | 0.24 in | 6.1 mm | Male Pin | Natural | Detent Lock | 2 A | UL94 V-0 | 100 VAC | Header | All | Tin | Square |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.23 | |
Description
General part information
140-511 Series
Connector Header Through Hole, Right Angle 11 position 0.079" (2.00mm)
