TA6FSHF

Active

Switchcraft Inc.

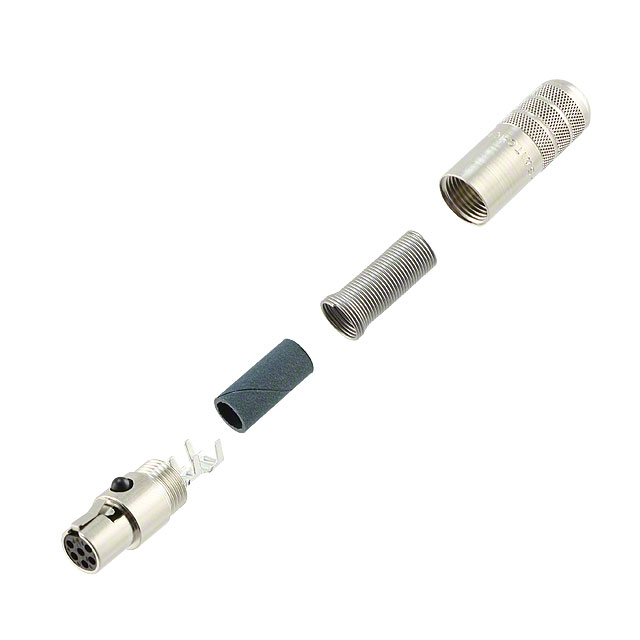

CONN PLUG FMALE MINI XLR 6P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 6P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA6FSHF

Applications	Audio, Medical
Backshell Material, Plating	Copper Alloy, Nickel
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Termination	Solder
Voltage Rating	125 VAC

CONN PLUG FMALE MINI XLR 6P SLDR

Part	Material Flammability Rating	Color	Voltage Rating	Shell Finish	Contact Finish - Mating	Features	Primary Material	Applications	Contact Material	Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Shell Size - Insert	Fastening Type	Shielding	Insert Material	Current Rating (Amps)	Mounting Type	Orientation	Shell Material	Number of Positions
Switchcraft Inc. TA6FSHF	UL94 V-0	Silver	125 VAC	Nickel	Silver	Backshell, Cable Clamp, Ground, Strain Relief	Metal	Audio, Medical	Copper Alloy	Solder	Female Sockets, Plug	85 °C	-55 °C	Copper Alloy, Nickel	Mini XLR	Latch Lock	Shielded	Thermoplastic	1.5 A	Free Hanging (In-Line)	Keyed	Copper Alloy	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Solder
