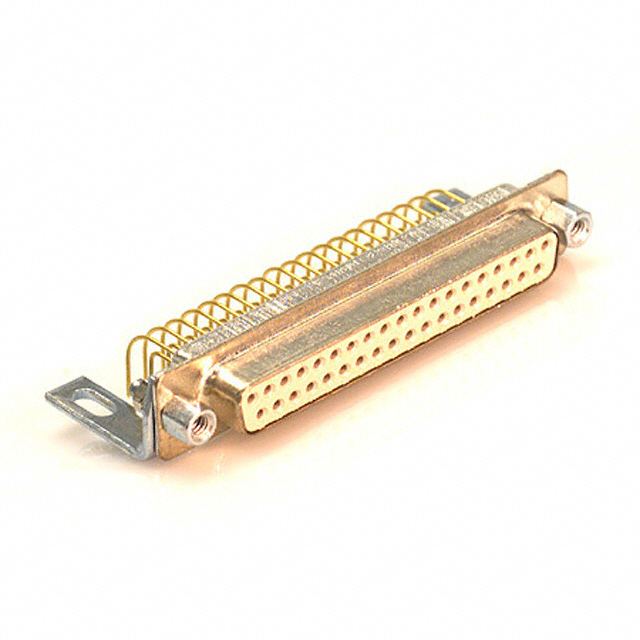

176-037-212R151

Obsolete

MH Connectors

CONN D-SUB RCPT 37POS R/A SLDR

Search across all available documentation for this part.

Obsolete

MH Connectors

CONN D-SUB RCPT 37POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	176-037-212R151

Backset Spacing	13.84 mm
Backset Spacing	0.545 in
Color	Beige
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Features	Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Number of Rows	2
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

Part	Connector Style	Connector Type	Mounting Type	Features	Color	Number of Rows	Number of Positions	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Contact Type	Dielectric Material	Contact Finish	Contact Finish Thickness	Current Rating (Amps)	Flange Feature	Material Flammability Rating	Contact Material	Termination
MH Connectors 176-037-212R151	D-Sub	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Mounting Brackets	Beige	2	37	4 (DC C)	13.84 mm	0.545 in	Signal	Polybutylene Terephthalate (PBT) Polyester	Gold	Flash	5 A	Female Screwlock (4-40) Mating Side	UL94 V-0	Brass	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

37 Position D-Sub Receptacle, Female Sockets Connector
