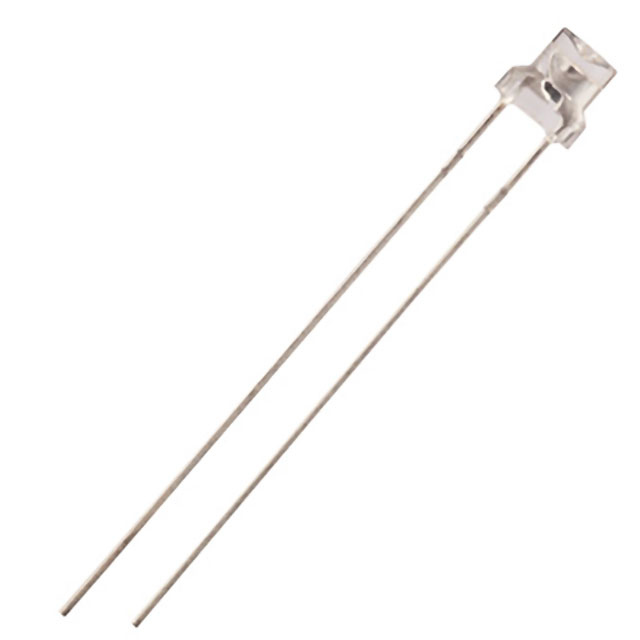

THG3809X
ObsoleteStanley Electric Co
LED GREEN CLEAR T/H
THG3809X
ObsoleteStanley Electric Co
LED GREEN CLEAR T/H
Description
General part information
THG3809X
Green 525nm LED Indication - Discrete 3V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | THG3809X |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) | 4.6 mm |
| Lens Color | Colorless |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 180 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Viewing Angle (Horizontal) | 90 ° |
| Viewing Angle (Vertical) | 90 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 520 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
