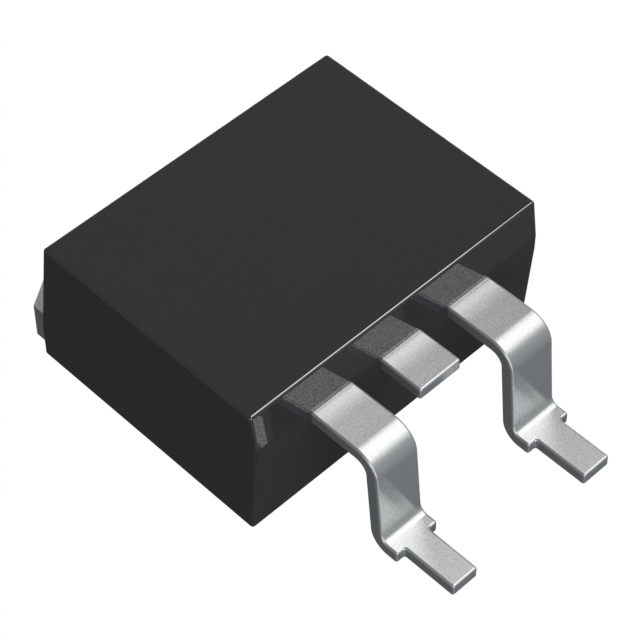

SPX29150T-L-3-3/TR
ObsoleteDiodes Inc
IC REG LINEAR 3.3V 1.5A TO263AB
SPX29150T-L-3-3/TR
ObsoleteDiodes Inc
IC REG LINEAR 3.3V 1.5A TO263AB
Description
General part information
SPX29150T-L-3-3/TR
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-263AB (D2PAK)
Technical Specifications
Parameters and characteristics for this part
| Specification | SPX29150T-L-3-3/TR |
|---|---|
| Control Features | Enable |
| Current - Output | 1.5 A |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | D2PAK (2 Leads + Tab), TO-263-3, TO-263AB |
| Package Name | TO-263AB (D2PAK) |
| Protection Features | Over Current, Reverse Polarity, Transient Voltage |
| Voltage - Input (Max) | 16 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) | 0.39 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
