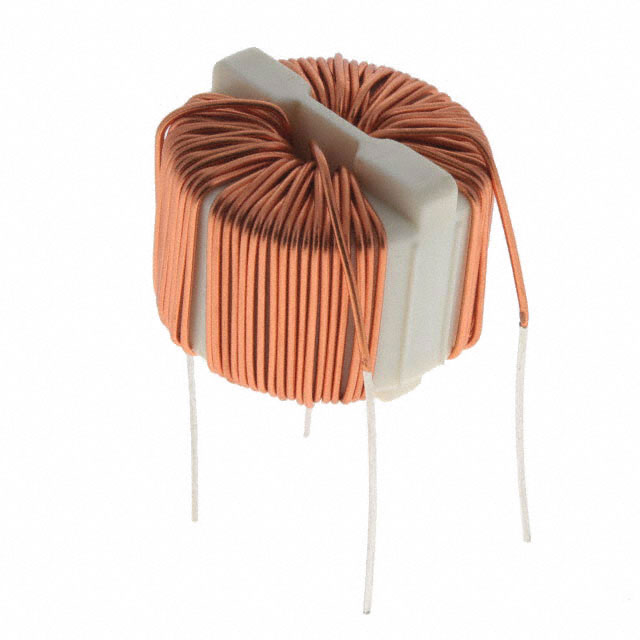

SC-02-E620H

SC-02-E620H

Active
KEMET

COMMON MODE FILTER, 6.2MH, 2A ROHS COMPLIANT: YES

Find alt
SC-02-E620H

SC-02-E620H

Active
KEMET

COMMON MODE FILTER, 6.2MH, 2A ROHS COMPLIANT: YES

Find alt

Description

General part information

SC-02 Series

6.2 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2A DCR 180mOhm

Technical Specifications

Parameters and characteristics for this part

SpecificationSC-02-E620H
Current Rating (Max)2 A
DC Resistance (DCR) (Max)180 mOhm
Filter TypePower Line
Height (Max)0.787 in
Inductance6.2 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature (Max)120 °C
Operating Temperature (Min)-40 °C
Package / CaseNo Base, 4 PC Pin, Horizontal
Package NameNo Base, Horizontal
Pad Count4 PC Pin
Size / Dimension Diameter1.063 in
Voltage Rating - AC250 V
Voltage Rating - DC250 VDC
