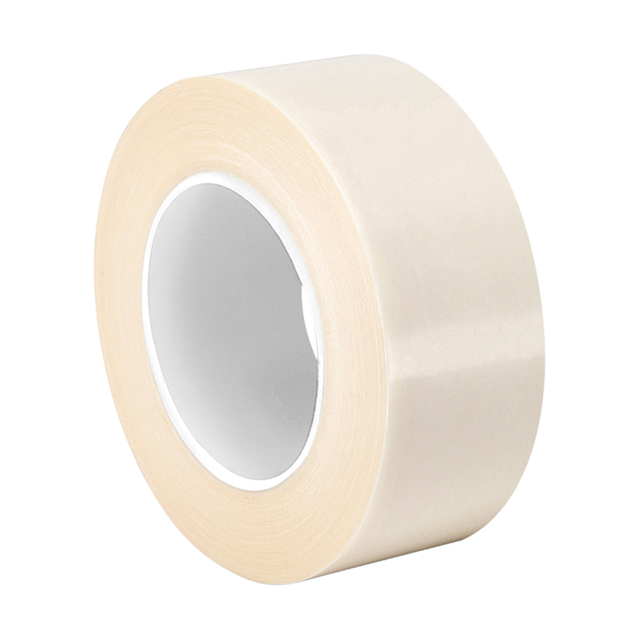

1.75-36-423-3

Active

TapeCase

TAPE POLYETHYLENE FILM WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.75-36-423-3

Active

TapeCase

TAPE POLYETHYLENE FILM WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.75-36-423-3	423 Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	UHMW Polythylene Film	UHMW Polythylene Film
Color	White	White
Tape Type	Polyethylene Film	Polyethylene Film
Thickness	3 mils	3 - 10 mils
Thickness	0.003 in	0.003 - 0.01 "
Thickness	0.076 mm	0.076 - 0.254 mm
Thickness - Adhesive	2 mils	2 mils
Thickness - Adhesive	0.051 mm	0.051 mm
Thickness - Adhesive [x]	0.002 "	0.002 "
Thickness - Backing, Carrier	0.003 in	0.003 - 0.01 "
Thickness - Backing, Carrier	3 mils	3 - 10 mils
Thickness - Backing, Carrier	0.076 mm	0.076 - 0.254 mm
Thickness - Backing, Carrier	-	0.005 "
Thickness - Backing, Carrier	-	5 mils
Thickness - Backing, Carrier	-	0.127 mm
Usage	General Purpose	General Purpose

423 Series

TAPE POLYETHYLENE FILM WHITE

...

Part	Adhesive	Color	Thickness	Thickness	Thickness	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Usage	Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]
TapeCase 2.75-36-423-10	Acrylic	White	0.254 mm	10 mils	0.01 "	0.01 "	0.254 mm	10 mils	Polyethylene Film	General Purpose	UHMW Polythylene Film
TapeCase 2-36-423-5	Acrylic	White	0.127 mm	5 mils	0.005 in				Polyethylene Film	General Purpose	UHMW Polythylene Film	2 mils	0.051 mm	0.002 "	0.005 "	5 mils	0.127 mm
TapeCase 1.375-36-423-10	Acrylic	White	0.254 mm	10 mils	0.01 "	0.01 "	0.254 mm	10 mils	Polyethylene Film	General Purpose	UHMW Polythylene Film
TapeCase 2.25-36-423-3	Acrylic	White	0.076 mm	3 mils	0.003 in	0.003 in	0.076 mm	3 mils	Polyethylene Film	General Purpose	UHMW Polythylene Film	2 mils	0.051 mm	0.002 "
TapeCase 1.25-36-423-10	Acrylic	White	0.254 mm	10 mils	0.01 "	0.01 "	0.254 mm	10 mils	Polyethylene Film	General Purpose	UHMW Polythylene Film
TapeCase 0.375-5-423-10 (PK5)	Acrylic	White	0.254 mm	10 mils	0.01 "	0.01 "	0.254 mm	10 mils	Polyethylene Film	General Purpose	UHMW Polythylene Film
TapeCase 1.5-36-423-5	Acrylic	White	0.127 mm	5 mils	0.005 in				Polyethylene Film	General Purpose	UHMW Polythylene Film	2 mils	0.051 mm	0.002 "	0.005 "	5 mils	0.127 mm
TapeCase 3/4-5-423-3	Acrylic	White	0.076 mm	3 mils	0.003 in	0.003 in	0.076 mm	3 mils	Polyethylene Film	General Purpose	UHMW Polythylene Film	2 mils	0.051 mm	0.002 "
TapeCase 0.25-5-423-5 (PK10)	Acrylic	White	0.127 mm	5 mils	0.005 in				Polyethylene Film	General Purpose	UHMW Polythylene Film	2 mils	0.051 mm	0.002 "	0.005 "	5 mils	0.127 mm
TapeCase 5-5-423-3	Acrylic	White	0.076 mm	3 mils	0.003 in	0.003 in	0.076 mm	3 mils	Polyethylene Film	General Purpose	UHMW Polythylene Film	2 mils	0.051 mm	0.002 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3	$ 93.53

Description

General part information

423 Series

Polyethylene Film Tape Acrylic Adhesive White X

Documents

Technical documentation and resources
