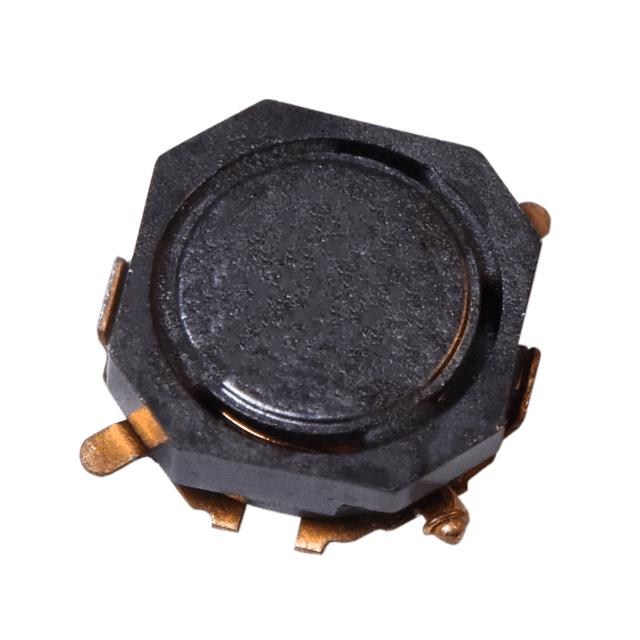

F1A1-464612-8R2N
ActiveSignal Transformer
FIXED IND 8.2UH 900MA 362 MOHM
F1A1-464612-8R2N
ActiveSignal Transformer
FIXED IND 8.2UH 900MA 362 MOHM
Description
General part information
F1A1-464612-8R2N
8.2 µH Shielded Drum Core, Wirewound Inductor 900 mA 362Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | F1A1-464612-8R2N |
|---|---|
| Current - Saturation (Isat) | 650 mA |
| Current Rating | 900 mA |
| DC Resistance (DCR) (Max) | 362 Ohm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.181 in |
| Size / Dimension Width | 0.181 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
