CG302T250X5L
ActiveCornell Dubilier Knowles

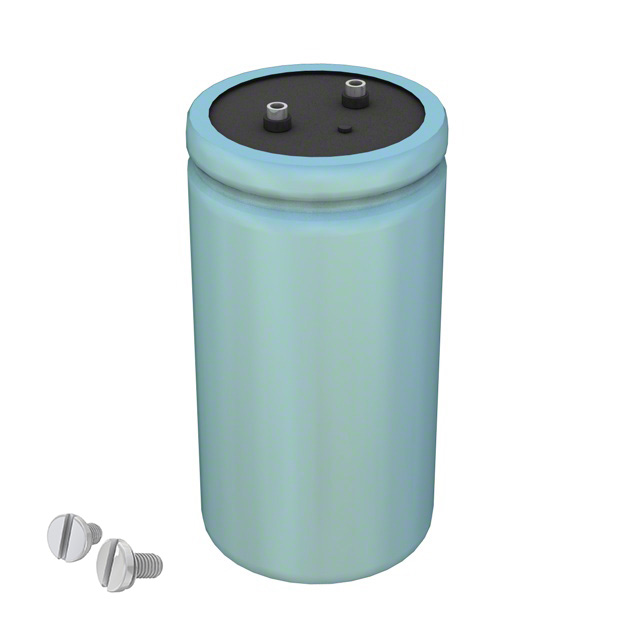

CAP ALUM 3000UF 250V SCREW CHAS
CG302T250X5L
ActiveCornell Dubilier Knowles
CAP ALUM 3000UF 250V SCREW CHAS
Description
General part information
CG302T250X5L
3000 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20mOhm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CG302T250X5L |
|---|---|
| Applications | General Purpose |
| Capacitance | 3000 µF |
| ESR (Equivalent Series Resistance) | 20 mOhm |
| Height - Seated (Max) | 5.625 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 14.2 A, 17.182 A |
| Size / Dimension Diameter | 3 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 250 V |
