Description
General part information

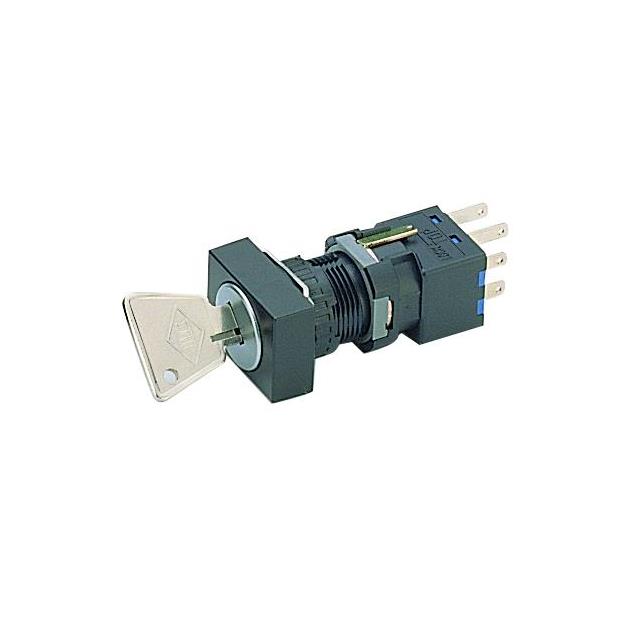

M6K-C20S1-A
Keylock Switch 2 Position SPDT 2A (AC), 400mA (DC) 250 VAC 125 VDC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | M6K-C20S1-A |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 90 ° |
| Circuit | SPDT |
| Contact Finish | Palladium |
| Contact Material | Silver (Ag) |
| Current Rating | 0.4 A, 2 A |
| Features | IP65, UL94 V-0 |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Removable Positions | All |
| Switch Function | On-On |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
