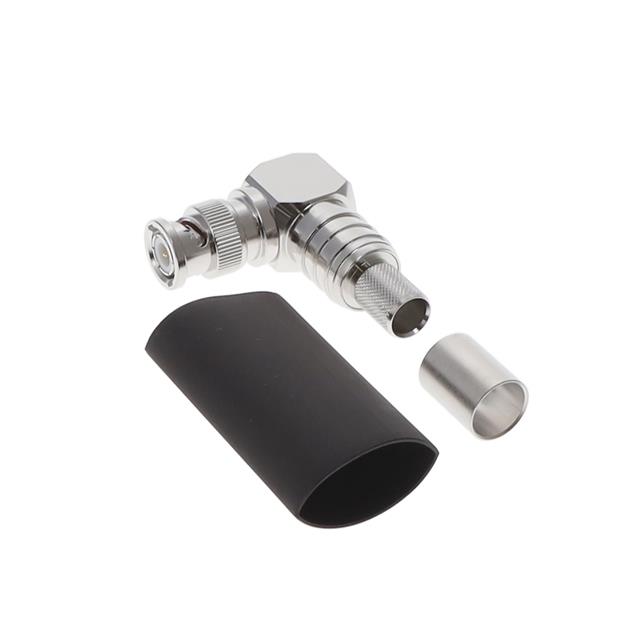

EZ-400-BM-RA-X
ActiveAmphenol Times Microwave Systems
BNC-MALE (PLUG) CRIMP RIGHT ANGL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZ-400-BM-RA-X
ActiveAmphenol Times Microwave Systems
BNC-MALE (PLUG) CRIMP RIGHT ANGL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EZ-400-BM-RA-X | EZ-400 Series |
|---|---|---|
| Body Finish | White Bronze | White Bronze, Tin, Nickel |
| Body Material | Brass | Brass |
| Cable Group | LMR-400 | LMR-400-75, LMR-400 |
| Center Contact Material | Beryllium Copper | Beryllium Copper, Phosphor Bronze, Brass |
| Center Contact Plating | Gold | Gold |
| Connector Style | BNC | N Type, QN, TNC, 4.3/10, BNC, F Type |
| Connector Style | - | 4.1 |
| Connector Style | - | 9.5 |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | Push On | Crimp, Push On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock | Snap-On, Bayonet Lock |
| Frequency - Max [Max] | 4 GHz | 2 - 6000 GHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 - 75 Ohms |
| Insertion Loss | 0.1 dB | 0.1 dB |
| Mating Cycles | - | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 155 °C | 85 - 165 °C |
| Operating Temperature [Min] | -55 °C | -65 - -40 °C |
| Shield Termination | Crimp | Crimp |
| Voltage Rating | - | 2.5 - 1000 kV |
EZ-400 Series
N-MALE (PLUG) CRIMP NON-SOLDER P
| Part | Connector Type | Contact Termination | Connector Style | Mating Cycles | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Max [Max] | Housing Color | Body Finish | Number of Ports | Cable Group | Mounting Type | Center Contact Material | Shield Termination | Dielectric Material | Center Contact Plating | Impedance | Fastening Type | Connector Style [Min] | Connector Style [Max] | Voltage Rating | Insertion Loss | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems EZ-400-NMK-X | Male Pin, Plug | Crimp | N Type | |||||||||||||||||||||
Amphenol Times Microwave Systems EZ-400-NMH-75-X | Male Pin, Plug | Push On | N Type | 500 | Brass | 125 °C | -40 °C | 3 GHz | Silver | White Bronze | 1 | LMR-400-75 | Free Hanging (In-Line) | Beryllium Copper | Crimp | Polytetrafluoroethylene (PTFE) | Gold | 75 Ohms | ||||||
Amphenol Times Microwave Systems EZ-400-QNF-X | Female Socket, Jack | Push On | QN | Brass | 125 °C | -40 °C | 6000 MHz | Silver | Tin | 1 | LMR-400 | Free Hanging (In-Line) | Beryllium Copper | Crimp | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Snap-On | ||||||
Amphenol Times Microwave Systems EZ-400-QNM-RA-X | Male Pin, Plug | Push On | QN | Brass | 125 °C | -40 °C | 6000 MHz | Silver | Tin | 1 | LMR-400 | Free Hanging (In-Line), Right Angle | Beryllium Copper | Crimp | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Snap-On | ||||||
Amphenol Times Microwave Systems EZ-400-4195M-X | Male Pin, Plug | Push On | 85 °C | -40 °C | 6000 MHz | Silver | White Bronze | 1 | LMR-400 | Free Hanging (In-Line) | Crimp | Gold | 50 Ohms | 4.1 | 9.5 | |||||||||
Amphenol Times Microwave Systems EZ-400-TF-PL-X | Female Socket, Jack | Push On | TNC | 500 | Brass | 125 °C | -40 °C | 6000 MHz | Silver | White Bronze | 1 | LMR-400 | Free Hanging (In-Line) | Beryllium Copper | Crimp | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | 2.5 kV | |||||
Amphenol Times Microwave Systems EZ-400-4310M-X | Male Pin, Plug | Push On | 4.3/10 | Brass | 125 °C | -40 °C | 6000 MHz | Silver | Tin | 1 | LMR-400 | Free Hanging (In-Line) | Beryllium Copper | Crimp | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | |||||||
Amphenol Times Microwave Systems EZ-400-BM-RA-X | Male Pin, Plug | Push On | BNC | Brass | 155 °C | -55 °C | 4 GHz | Silver | White Bronze | 1 | LMR-400 | Free Hanging (In-Line), Right Angle | Beryllium Copper | Crimp | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Bayonet Lock | 0.1 dB | |||||
Amphenol Times Microwave Systems EZ-400-TF-X | Female Socket, Jack | Push On | TNC | 500 | Brass | 125 °C | -55 °C | 6000 MHz | Silver | White Bronze | 1 | LMR-400 | Free Hanging (In-Line) | Phosphor Bronze | Crimp | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | 750 VDC | |||||
Amphenol Times Microwave Systems EZ-400-FMH-75 | Male Pin, Plug | Push On | F Type | Brass | 85 °C | -40 °C | 2 GHz | Silver | Nickel | 1 | LMR-400-75 | Free Hanging (In-Line) | Brass | Crimp | Polytetrafluoroethylene (PTFE) | Gold | 75 Ohms | 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 19.13 | |
| 10 | $ 16.75 | |||
| 25 | $ 16.03 | |||
| 50 | $ 15.51 | |||
| 100 | $ 15.00 | |||
| 250 | $ 14.17 | |||
| 500 | $ 13.76 | |||
Description
General part information
EZ-400 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Push On
