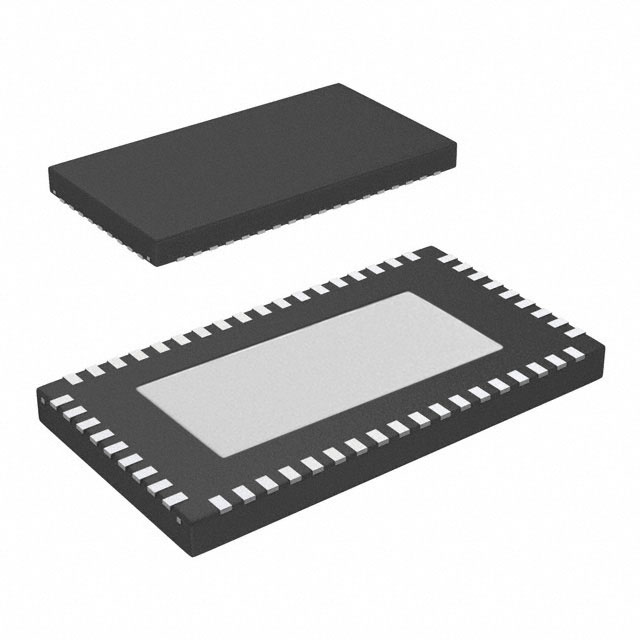

PI3EQX8908ZFE

Obsolete

Diodes Inc

IC REDRIVER PCIE 8CH 54TQFN

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC REDRIVER PCIE 8CH 54TQFN

Technical Specifications

Parameters and characteristics for this part

Specification	PI3EQX8908ZFE

Applications	PCIe
Data Rate (Max)	8 Gbps
Mounting Type	Surface Mount
Number of Channels	8
Package / Case	54-WFQFN Exposed Pad
Signal Conditioning	Input Equalization, Output De-Emphasis
Supplier Device Package	54-TQFN
Supplier Device Package [x]	10
Supplier Device Package [y]	5.5
Type	ReDriver, Buffer
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

3.3V, 2.5/5/8Gbps 4 Port/8 channel LINEAR PCIe ReDriver with Pin Strap and I2C control, flowthough pinout

Part	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Data Rate (Max)	Signal Conditioning	Type	Package / Case	Number of Channels	Mounting Type
Diodes Inc PI3EQX8908AZFE	54-TQFN	5.5	10	3.6 V	3 V	PCIe	8 Gbps	Input Equalization Output De-Emphasis	Buffer ReDriver	54-WFQFN Exposed Pad	8	Surface Mount
Diodes Inc PI3EQX8908AZFEX	54-TQFN	5.5	10	3.6 V	3 V	PCIe	8 Gbps	Input Equalization Output De-Emphasis	Buffer ReDriver	54-WFQFN Exposed Pad	8	Surface Mount
Diodes Inc PI3EQX8908ZFE	54-TQFN	5.5	10	3.6 V	3 V	PCIe	8 Gbps	Input Equalization Output De-Emphasis	Buffer ReDriver	54-WFQFN Exposed Pad	8	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3.3V, 2.5/5/8Gbps 4 Port/8 channel LINEAR PCIe ReDriver with Pin Strap and I2C control, flowthough pinout

Technical documentation and resources

No documents available
