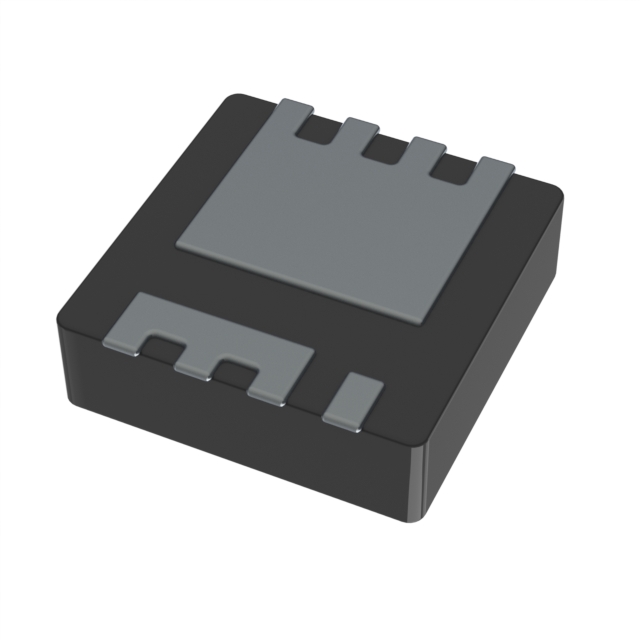

ISZ0703NLSATMA1

Active

Infineon Technologies

OPTIMOS™ PD POWER MOSFET, INCLUDING ISZ0703NLS, IS INFINEON’S PORTFOLIO TARGETING USB-PD AND ADAPTER APPLICATIONS.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

ISZ0703NLSATMA1

Active

Infineon Technologies

OPTIMOS™ PD POWER MOSFET, INCLUDING ISZ0703NLS, IS INFINEON’S PORTFOLIO TARGETING USB-PD AND ADAPTER APPLICATIONS.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISZ0703NLSATMA1

Current - Continuous Drain (Id) @ 25°C	13 A, 56 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	23 nC
Input Capacitance (Ciss) (Max) @ Vds	1400 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max)	2.5 W, 44 W
Rds On (Max) @ Id, Vgs	7.3 mOhm
Supplier Device Package	PG-TSDSON-8-25
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.3 V

ISZ0703N Series

Part	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Vgs(th) (Max) @ Id	Package / Case	Drain to Source Voltage (Vdss)	Technology	FET Type	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Vgs (Max)	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds
Infineon Technologies ISZ0703NLSATMA1	13 A 56 A	Surface Mount	2.3 V	8-PowerTDFN	60 V	MOSFET (Metal Oxide)	N-Channel	7.3 mOhm	23 nC	20 V	PG-TSDSON-8-25	-55 °C	175 ░C	2.5 W 44 W	4.5 V 10 V	1400 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.07
		10	$ 0.88
		100	$ 0.68
		500	$ 0.58
		1000	$ 0.47
		2000	$ 0.44
	Digi-Reel®	1	$ 1.07
		10	$ 0.88
		100	$ 0.68
		500	$ 0.58
		1000	$ 0.47
		2000	$ 0.44
	Tape & Reel (TR)	5000	$ 0.42
		10000	$ 0.40
Newark	Each (Supplied on Cut Tape)	1	$ 1.63
		10	$ 1.15
		25	$ 1.07
		50	$ 0.98
		100	$ 0.89
		250	$ 0.82
		500	$ 0.74
		1000	$ 0.65

Description

General part information

ISZ0703N Series

OptiMOS™ PD power MOSFETis Infineon’s portfolio targetingUSB-PDandadapter applications. The products offer fast ramp-up and optimized lead times. OptiMOS™ low-voltage MOSFETs for power delivery enable designs with less parts leading to BOM cost reduction.OptiMOS™ PDfeatures quality products in compact, lightweight packages.
