BU-2020-A-48-0
ActiveTEST LEAD, 4MM BANANA PLUG TO 4MM BANANA PLUG, BLACK, 300 V, 5 A, 1.2 M
Deep-Dive with AI
Search across all available documentation for this part.
BU-2020-A-48-0
ActiveTEST LEAD, 4MM BANANA PLUG TO 4MM BANANA PLUG, BLACK, 300 V, 5 A, 1.2 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BU-2020-A-48-0 | BU-2020 Series |
|---|---|---|
| 1st Connector | Single, Stackable, Banana Plug | Single, Stackable, Banana Plug |
| 2nd Connector | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable |
| Cable Length | 48 in | 5 - 48 in |
| Cable Length | 1219.2 mm | 304.8 - 1524 mm |
| Configuration | Banana to Banana | Banana to Banana |
| Contents | 1 Lead, Black | 1 Lead, Black, Red |
| Contents | - | 1 |
| Current Rating (Amps) | 10 A | 10 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Stacking Method | Multi-Stacking, Front and Vertical | Multi-Stacking, Front and Vertical |
| Type | Patch Cord | Patch Cord |
| Voltage - Rated | 300 V | 300 V |
| Wire Gauge | 20 AWG | 20 AWG |
BU-2020 Series
TEST LEAD, 4MM BANANA PLUG TO 4MM BANANA PLUG, BLACK, 300 V, 5 A, 1.2 M
| Part | Material - Insulation | Type | Voltage - Rated | Stacking Method | Configuration | Current Rating (Amps) | Wire Gauge | Contents | 2nd Connector | 1st Connector | Cable Length | Cable Length | Contents [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MUELLER ELECTRIC BU-2020-A-48-0 | Poly-Vinyl Chloride (PVC) | Patch Cord | 300 V | Multi-Stacking, Front and Vertical | Banana to Banana | 10 A | 20 AWG | 1 Lead, Black | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable | 48 in | 1219.2 mm | |
MUELLER ELECTRIC BU-2020-A-12-2 | Poly-Vinyl Chloride (PVC) | Patch Cord | 300 V | Multi-Stacking, Front and Vertical | Banana to Banana | 10 A | 20 AWG | Red | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable | 12 in | 304.8 mm | 1 |
MUELLER ELECTRIC BU-2020-A-24-0 | Poly-Vinyl Chloride (PVC) | Patch Cord | 300 V | Multi-Stacking, Front and Vertical | Banana to Banana | 10 A | 20 AWG | 1 Lead, Black | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable | 24 " | 609.6 mm | |
MUELLER ELECTRIC BU-2020-A-12-0 | Poly-Vinyl Chloride (PVC) | Patch Cord | 300 V | Multi-Stacking, Front and Vertical | Banana to Banana | 10 A | 20 AWG | 1 Lead, Black | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable | 12 in | 304.8 mm | |
MUELLER ELECTRIC BU-2020-A-36-2 | Poly-Vinyl Chloride (PVC) | Patch Cord | 300 V | Multi-Stacking, Front and Vertical | Banana to Banana | 10 A | 20 AWG | Red | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable | 36 in | 914.4 mm | 1 |
MUELLER ELECTRIC BU-2020-A-48-2 | Poly-Vinyl Chloride (PVC) | Patch Cord | 300 V | Multi-Stacking, Front and Vertical | Banana to Banana | 10 A | 20 AWG | Red | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable | 48 in | 1219.2 mm | 1 |
MUELLER ELECTRIC BU-2020-A-36-0 | Poly-Vinyl Chloride (PVC) | Patch Cord | 300 V | Multi-Stacking, Front and Vertical | Banana to Banana | 10 A | 20 AWG | 1 Lead, Black | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable | 36 in | 914.4 mm | |
MUELLER ELECTRIC BU-2020-A-24-2 | Poly-Vinyl Chloride (PVC) | Patch Cord | 300 V | Multi-Stacking, Front and Vertical | Banana to Banana | 10 A | 20 AWG | Red | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable | 24 " | 609.6 mm | 1 |
MUELLER ELECTRIC BU-2020-A-60-2 | Poly-Vinyl Chloride (PVC) | Patch Cord | 300 V | Multi-Stacking, Front and Vertical | Banana to Banana | 10 A | 20 AWG | Red | Banana Plug, Single, Stackable | Banana Plug, Single, Stackable | 5 ft | 1524 mm | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-2020 Series

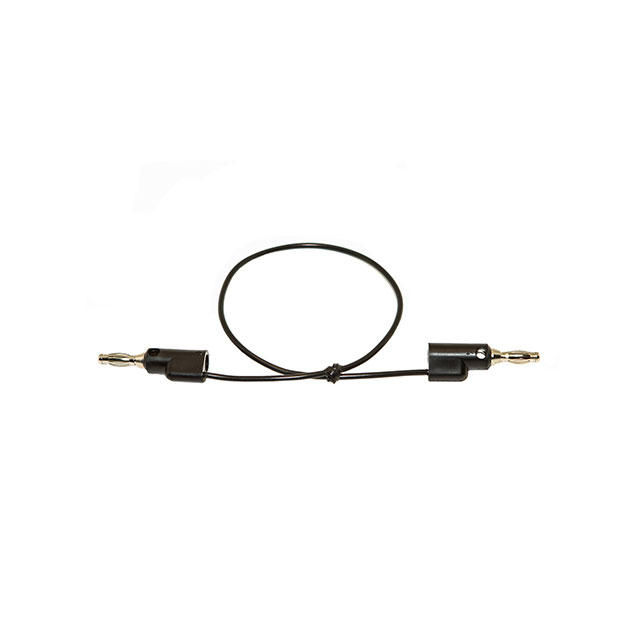

The BU-2020-A-48-0 is a Test Lead with over-moulded stackable 4mm banana plug on both the ends. It accepts 20AWG tinned copper with 105°C PVC insulated hook-up wire. The plug has ABS housing and nine-leaf cage spring. The plunger has nylon housing, stainless steel spring and beryllium copper contact.
