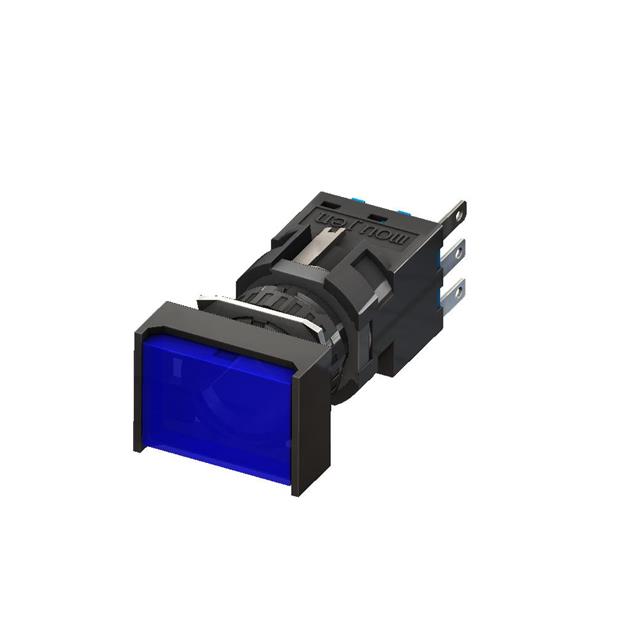

M6L-CS220B
Neon Panel Indicator Blue Diffused 220V 1.2mA Quick Connect - 0.110" (2.8mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | M6L-CS220B |
|---|---|
| Current | 1.2 mA |
| Features | UL94 V-0 |
| Ingress Protection | IP65 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Length | 24 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Diffused |
| Lens Width | 18 mm |
| Panel Cutout Dimension | 0.64 " |
| Panel Cutout Shape | Round |
| Quick Connect Size (0.110") | 0.11 in |
| Ratings | AC |
| Termination Style | Quick Connect |
| Type | Neon |
| Voltage | 220 VAC |
