RC0805FR-071K8P

Active

YAGEO

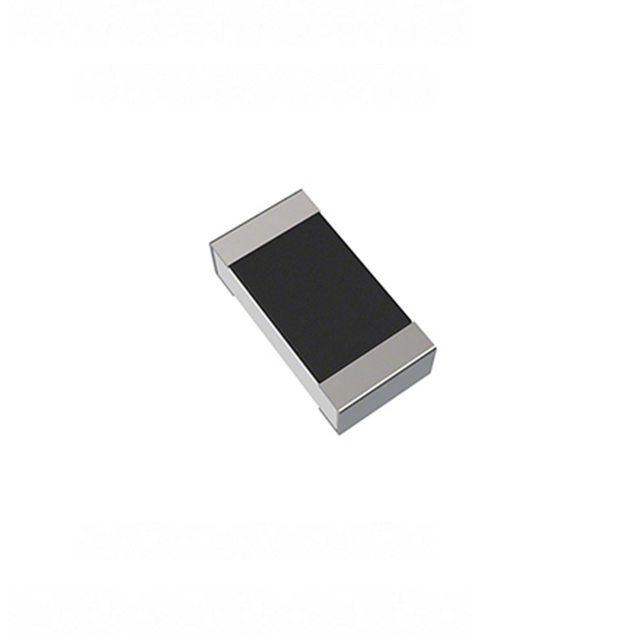

RES 1.8K OHM 1% 1/8W 0805

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Chip Resistor Packing +3

RC0805FR-071K8P

Active

YAGEO

RES 1.8K OHM 1% 1/8W 0805

Deep-Dive with AI

DocumentsDatasheet Chip Resistor Packing +3

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.04
		50	$ 0.03
		100	$ 0.02
		500	$ 0.02
		1000	$ 0.01
	Digi-Reel®	1	$ 0.10
		10	$ 0.04
		50	$ 0.03
		100	$ 0.02
		500	$ 0.02
		1000	$ 0.01
	Tape & Reel (TR)	5000	$ 0.01
		10000	$ 0.01
		25000	$ 0.01
		35000	$ 0.01
		50000	$ 0.01
		125000	$ 0.01

Description

General part information

RC0805 Series

1.8 kOhms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thick Film

Documents

Technical documentation and resources

Datasheet

Chip Resistor Packing

Datasheet

Chip Resistor Marking

Chip Resistors Mounting

Standard Resistance Value in Decade

Related Document

Specification	RC0805FR-071K8P	RC0805 Series

Composition	Thick Film	Thick Film
Height - Seated (Max) [Max] [z]	0.6 mm	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in	0.024 in
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0805	0805
Power (Watts)	0.125 W	0.125 W
Power (Watts)	0.125 W	0.125 W
Ratings	7C1, 100% Pb-Free, RoHS w/out Exemption	7C1, 100% Pb-Free, RoHS w/out Exemption
Resistance	1.8 kOhms	1 - 750000 Ohms
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	0.049 in	0.049 in
Size / Dimension [y]	1.25 mm	1.25 mm
Supplier Device Package	0805	0805
Temperature Coefficient	100 ppm/°C	100 - 200 ppm/°C
Tolerance	1 %	1 - 5 %

Part	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Power (Watts)	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Tolerance	Resistance	Number of Terminations	Supplier Device Package	Package / Case
YAGEO RC0805FR-07750KP	100 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	1 %	750000 Ohms	2	0805	0805
YAGEO RC0805FR-07511RP	100 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	1 %	511 Ohms	2	0805	0805
YAGEO RC0805FR-07180RP	100 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	1 %	180 Ohms	2	0805	0805
YAGEO RC0805FR-0734R8P	100 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	1 %		2	0805	0805
YAGEO RC0805FR-0742K2P	100 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	1 %	42.2 kOhms	2	0805	0805
YAGEO RC0805FR-0718RP	100 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	1 %	18 Ohms	2	0805	0805
YAGEO RC0805JR-075K6P	100 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	5 %	5.6 kOhms	2	0805	0805
YAGEO RC0805FR-131RP	200 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	1 %	1 Ohms	2	0805	0805
YAGEO RC0805FR-0740K2P	100 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	1 %		2	0805	0805
YAGEO RC0805FR-0715RP	100 ppm/°C	2 mm	0.079 in	0.049 in	1.25 mm	0.6 mm	0.024 in	0.125 W	0.125 W	100% Pb-Free, 7C1, RoHS w/out Exemption	155 °C	-55 °C	Thick Film	1 %	15 Ohms	2	0805	0805
