1424527

Active

Phoenix Contact

CABLE GLAND 10-14MM M25 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 10-14MM M25 BRASS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

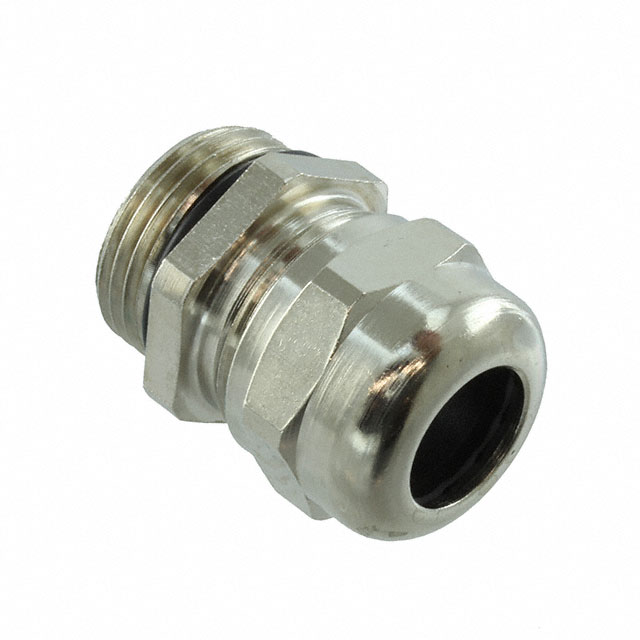

Cable Gland Brass, Nickel Plated M25x1.5 Silver

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1424527	G-INS-M25 Series

Color	Silver	Silver, Black, Gray
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69	IP66, IP68, IP69, IP66/IP68
Material	Brass, Nickel Plated	Brass, Nickel Plated, Polyamide (PA), Nylon, Stainless Steel
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Outside Cable Diameter (Max)	-	16.99 - 18.01 mm
Outside Cable Diameter (Max)	-	0.669 - 0.709 in
Outside Cable Diameter (Max) [Max]	14 mm	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "	0.551 "
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.394 - 0.512 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	10 - 11 mm
Thread Length	8 mm	8 - 10 mm
Thread Length	0.315 in	0.315 - 0.394 in
Thread Size	M25x1.5	M25x1.5, M25
Type	Cable Gland	Cable Gland

CABLE GLAND 10-14MM M25 BRASS

Part	Includes	Material	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)
Phoenix Contact 1424527	O-Ring, Seal	Brass, Nickel Plated	Silver	14 mm	0.551 "	8 mm	0.315 in	0.394 in	10 mm	M25x1.5	Cable Gland	IP66, IP68, IP69	100 °C	-40 °C
Phoenix Contact 1411134	Seal	Polyamide (PA), Nylon	Black			8 mm	0.315 in	0.433 in	11 mm	M25	Cable Gland	IP66/IP68	100 °C	-40 °C	16.99 mm	0.669 in
Phoenix Contact 1424482	Seal	Polyamide (PA), Nylon	Black			10 mm	0.394 in	0.512 in		M25x1.5	Cable Gland	IP66/IP68	100 °C	-40 °C	18.01 mm	0.709 in	13 mm
Phoenix Contact 1424544	O-Ring, Seal	Stainless Steel	Silver			8 mm	0.315 in	0.433 in	11 mm	M25x1.5	Cable Gland	IP66, IP68, IP69	100 °C	-40 °C	16.99 mm	0.669 in
Phoenix Contact 1424477	Seal	Polyamide (PA), Nylon	Gray			10 mm	0.394 in	0.512 in		M25x1.5	Cable Gland	IP66/IP68	100 °C	-40 °C	18.01 mm	0.709 in	13 mm
Phoenix Contact 1424472	Seal	Polyamide (PA), Nylon	Gray			10 mm	0.394 in	0.512 in		M25x1.5	Cable Gland	IP66/IP68	100 °C	-20 C	18.01 mm	0.709 in	13 mm
