Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A8MMS-1436G | A8MMS Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | DIP to DIP, Reversed | DIP to DIP, Reversed |
| Contact Finish | Tin | Tin |
| Contact Finish Thickness | 2.54 µm | 2.54 µm |
| Contact Finish Thickness | 100 µin | 100 µin |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 3 ft | 1.5 - 3 ft |
| Length [x] | 914.4 mm | 457.2 - 914.4 mm |
| Number of Positions | 14 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
| Usage | Board In, Socket (0.1") | Board In, Socket (0.1") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.41 | |
| 10 | $ 8.63 | |||
| 25 | $ 8.01 | |||
| 50 | $ 7.57 | |||
| 100 | $ 7.15 | |||
| 250 | $ 6.64 | |||
| 500 | $ 6.28 | |||
| 1000 | $ 5.94 | |||
A8MMS Series
ADM14S/AE14G/ADM14S
| Part | Pitch - Connector | Pitch - Connector | Connector Type | Contact Finish | Usage | Contact Finish Thickness | Contact Finish Thickness | Pitch - Cable | Pitch - Cable | Number of Positions | Shielding | Cable Termination | Length [x] | Length [x] | Number of Rows | Length | Length | Length | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A8MMS-1436G | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 14 | Unshielded | IDC | 3 ft | 914.4 mm | 2 | |||||
TE Connectivity AMP Connectors A8MMS-4036G | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 40 | Unshielded | IDC | 3 ft | 914.4 mm | 2 | |||||
TE Connectivity AMP Connectors A8MMS-1018G | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 10 | Unshielded | IDC | 1.5 ft | 457.2 mm | 2 | |||||
TE Connectivity AMP Connectors A8MMS-6006G | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 60 | Unshielded | IDC | 2 | 152.4 mm | 6 " | 0.5 ' | ||||
TE Connectivity AMP Connectors A8MMS-1418G | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 14 | Unshielded | IDC | 1.5 ft | 457.2 mm | 2 | |||||
TE Connectivity AMP Connectors A8MMS-2418G | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 24 | Unshielded | IDC | 1.5 ft | 457.2 mm | 2 | |||||
TE Connectivity AMP Connectors A8MMS-1418M | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 14 | Unshielded | IDC | 1.5 ft | 457.2 mm | 2 | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A8MMS-2036G | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 20 | Unshielded | IDC | 3 ft | 914.4 mm | 2 | |||||
TE Connectivity AMP Connectors A8MMS-2406G | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 24 | Unshielded | IDC | 2 | 152.4 mm | 6 " | 0.5 ' | ||||
TE Connectivity AMP Connectors A8MMS-4036M | 0.1 in | 2.54 mm | DIP to DIP, Reversed | Tin | Board In, Socket (0.1") | 2.54 µm | 100 µin | 0.05 " | 1.27 mm | 40 | Unshielded | IDC | 3 ft | 914.4 mm | 2 | Multiple, Ribbon |
Description
General part information
A8MMS Series

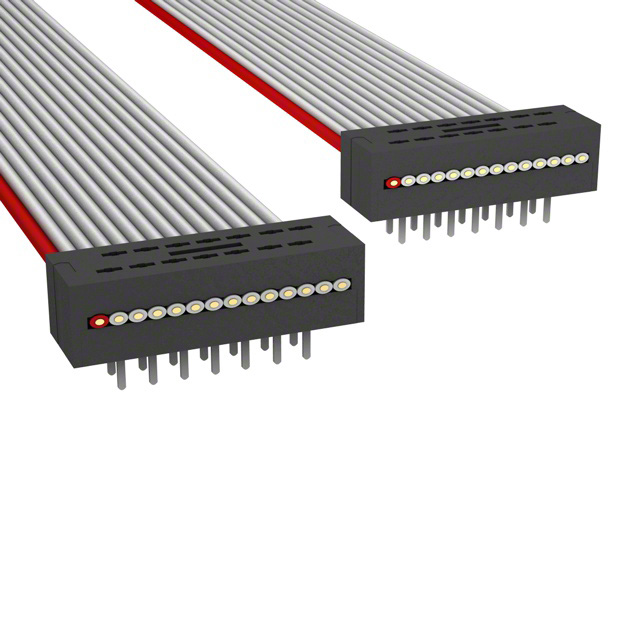

14 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
