PE3242LF-36
ActivePasternack

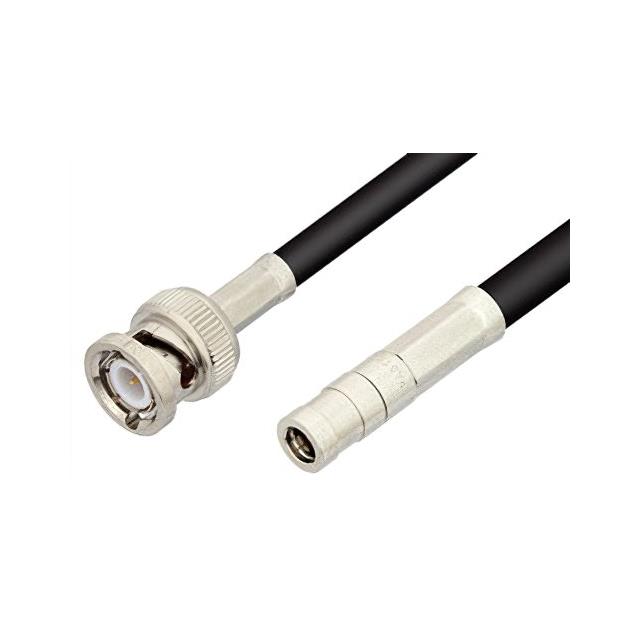

SMB PLUG TO BNC MALE CABLE 36 IN
PE3242LF-36
ActivePasternack
SMB PLUG TO BNC MALE CABLE 36 IN
Description
General part information
PE3242LF-36
Cable Assembly Coaxial BNC to SMB RG-58 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3242LF-36 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMB Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 4 GHz |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | SMB, BNC |
