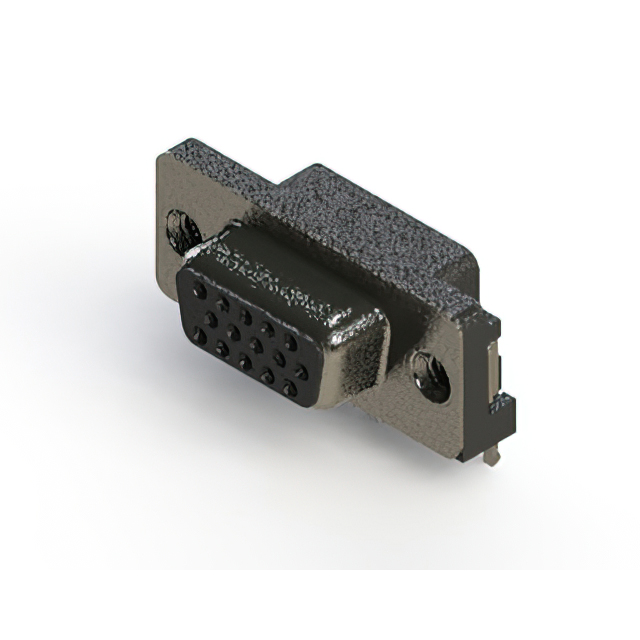

632-015-666-532

Active

EDAC Inc.

RIGHT-ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

632-015-666-532

Active

EDAC Inc.

RIGHT-ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	632-015-666-532

Backset Spacing	3.08 mm
Backset Spacing	0.121 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

632-015 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows	Color	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Contact Finish	Number of Positions	Connector Type	Mounting Type	Features	Contact Type	Dielectric Material	Material Flammability Rating	Flange Feature	Shell Material, Finish	Termination	Backset Spacing	Backset Spacing	Contact Finish Thickness
EDAC Inc. 632-015-674-535	0.76 Ám	30 Áin	-55 °C	125 °C	Brass	3	Blue	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Housing/Shell (M3)	Nickel Plated Steel	Solder
EDAC Inc. 632-015-666-532	0.76 Ám	30 Áin	-55 °C	125 °C	Brass	3	Black	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Housing/Shell (4-40)	Nickel Plated Steel	Solder	3.08 mm	0.121 in
EDAC Inc. 632-015-374-533	0.38 µm	15 µin	-55 °C	125 °C	Brass	3	Blue	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Solder
EDAC Inc. 632-015-674-031	0.76 Ám	30 Áin	-55 °C	85 °C	Brass	3	Blue	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Housing/Shell (Unthreaded)	Nickel Plated Steel	Solder
EDAC Inc. 632-015-274-032			-55 °C	85 °C	Brass	3	Blue	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Housing/Shell (4-40)	Nickel Plated Steel	Solder			Flash
EDAC Inc. 632-015-266-033			-55 °C	85 °C	Brass	3	Black	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Solder	3.08 mm	0.121 in	Flash
EDAC Inc. 632-015-374-035	0.38 µm	15 µin	-55 °C	85 °C	Brass	3	Blue	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Housing/Shell (M3)	Nickel Plated Steel	Solder
EDAC Inc. 632-015-266-535			-55 °C	125 °C	Brass	3	Black	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Housing/Shell (M3)	Nickel Plated Steel	Solder	3.08 mm	0.121 in	Flash
EDAC Inc. 632-015-366-531	0.38 µm	15 µin	-55 °C	125 °C	Brass	3	Black	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Housing/Shell (Unthreaded)	Nickel Plated Steel	Solder	3.08 mm	0.121 in
EDAC Inc. 632-015-274-031			-55 °C	85 °C	Brass	3	Blue	3 A	DE E	1	High Density	D-Sub High Density	Gold	15	Receptacle Female Sockets	Through Hole Right Angle	Board Lock Shielded	Signal	Polyester Thermoplastic	UL94 V-0	Housing/Shell (Unthreaded)	Nickel Plated Steel	Solder			Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5000	$ 3.32
Newark	Each	500	$ 4.76

Description

General part information

632-015 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
