794283-1

Active

TE Connectivity AMP Connectors

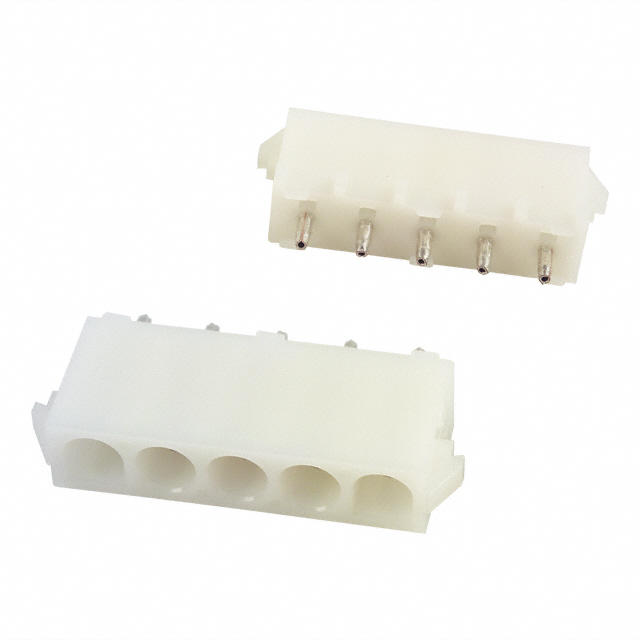

CONN HEADER VERT 5POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 5POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	794283-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.215 in
Contact Length - Post	5.46 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	12 A
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER VERT 5POS 2.54MM

Part	Voltage Rating	Connector Type	Contact Length - Post	Contact Length - Post	Contact Type	Contact Material	Contact Shape	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Color	Fastening Type	Current Rating (Amps)	Number of Rows	Style	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Shrouding	Applications	Insulation Material	Termination
TE Connectivity AMP Connectors 794283-1	600 VAC	Header	0.215 in	5.46 mm	Male Pin	Phosphor Bronze	Circular	All	-40 °C	105 ░C	UL94 V-0	White	Locking Ramp	12 A	1	Board to Cable/Wire	Through Hole	Tin	0.55 in	13.97 mm	6.35 mm	0.25 in	Shrouded - 4 Wall	General Purpose	Nylon, Polyamide (PA)	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2600	$ 1.14

General part information

Connector Header Through Hole 5 position 0.250" (6.35mm)
