1217904-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 16-22AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 16-22AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	1217904-1

Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max]	3.3 mm
Insulation Diameter [Max]	0.13 in
Insulation Diameter [Min]	2.29 mm
Insulation Diameter [Min]	0.09 in
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Length	7.75 mm
Tab Length	0.305 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

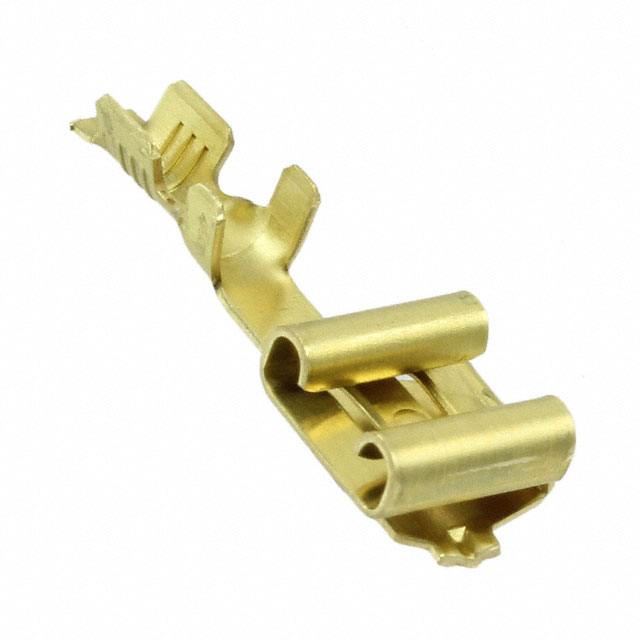

CONN QC RCPT 16-22AWG 0.250

Part	Contact Material	Mounting Type	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Tab Length	Tab Length	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Termination	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Gender	Insulation
TE Connectivity AMP Connectors 1217904-1	Brass	Free Hanging (In-Line), Right Angle	Angled - 90°, Flag	22 AWG	16 AWG	7.75 mm	0.305 in	3.3 mm	2.29 mm	0.13 in	0.09 in	Crimp	0.032 in	0.81 mm	6.35 mm	0.25 in	Female	Non-Insulated

General part information

0.250" (6.35mm) Quick Connect Female 16-22 AWG Crimp Connector Non-Insulated
