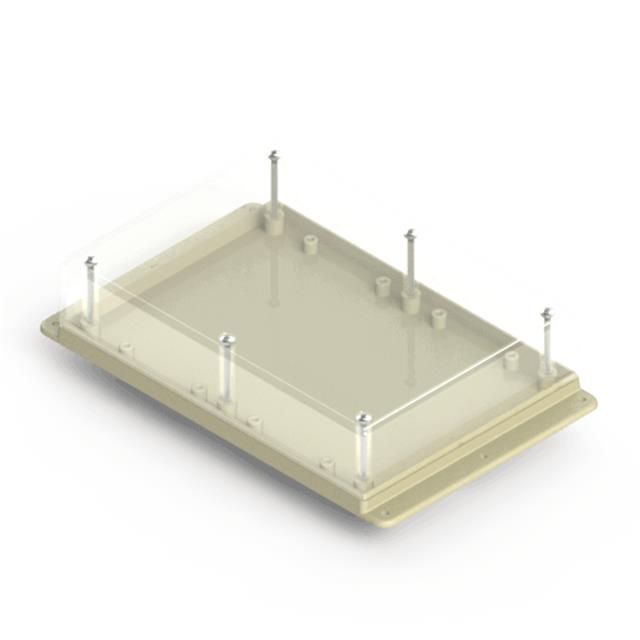

WM072RC,AL

Active

Serpac

BOX PLSTC AMD/CL 6.88"L X 4.88"W

Deep-Dive with AI

Search across all available documentation for this part.

WM072RC,AL

Active

Serpac

BOX PLSTC AMD/CL 6.88"L X 4.88"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM072RC,AL

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	40.64 mm
Height [z]	1.6 in
Material	Plastic, Polycarbonate
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	185.97 g
Weight	0.41 lb

WM072 Series

Part	Material	Area (L x W) [custom]	Area (L x W) [custom]	Design	Color	Container Type	Weight	Weight	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness	Height [z]	Height [z]	Ratings	Features	Area (L x W)	Area (L x W)
Serpac WM072I,BK	Plastic ABS	217 cm˛	33.6 in˛	Cover Included	Black	Box	185.97 g	0.41 lb	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount
Serpac WM072RI,GY	Plastic ABS			Cover Included	Gray	Box	185.97 g	0.41 lb	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM072RI,AL	Plastic ABS			Cover Included	Almond	Box	185.97 g	0.41 lb	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM072C,GY	Plastic Polycarbonate			Cover Included	Clear Cover/Door Gray	Box	185.97 g	0.41 lb		123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM072R,BK	Plastic ABS			Cover Included	Black	Box	185.97 g	0.41 lb	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM072I,GY	Plastic ABS			Cover Included	Gray	Box	185.97 g	0.41 lb	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM072I,AL	Plastic ABS			Cover Included	Almond	Box	185.97 g	0.41 lb	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM072R,AL	Plastic ABS			Cover Included	Almond	Box	185.97 g	0.41 lb	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM072,BK	Plastic ABS	217 cm˛	33.6 in˛	Cover Included	Black	Box	185.97 g	0.41 lb	UL94 HB	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount
Serpac WM072RC,GY	Plastic Polycarbonate			Cover Included	Clear Cover/Door Gray	Box	185.97 g	0.41 lb		123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	40.64 mm	1.6 in	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.37

Description

General part information

WM072 Series

Box Plastic, Polycarbonate Almond, Clear Cover/Door Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.600" (40.64mm)
