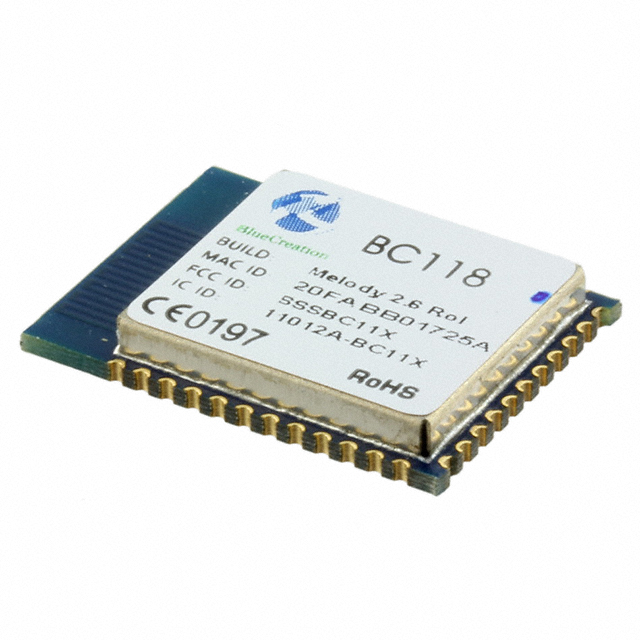

BC118_1103394

Obsolete

Sierra Wireless

RF TXRX MOD BLUETOOTH CHIP SMD

Search across all available documentation for this part.

Obsolete

Sierra Wireless

RF TXRX MOD BLUETOOTH CHIP SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC118_1103394	BC118 Series

Antenna Type	Integrated, Chip	Integrated, Chip, Integrated, Trace
Current - Receiving	16 mA	16 mA
Current - Transmitting	16 mA	16 mA
Data Rate	270 kbps	270 kbps
For Use With/Related Products	-	BC118
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.4 GHz
Frequency	-	2.48 GHz
Memory Size	512 MB	512 MB
Modulation	DQPSK, GFSK, DPSK	DQPSK, GFSK, DPSK, QPSK, 8PSK
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	7.5 dBm	7.5 dBm
Protocol	Bluetooth v4.0	Bluetooth v4.0, Bluetooth v4.1
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-92.5 dBm	-92.5 dBm
Serial Interfaces	USB, I2C, UART	USB, I2C, UART
Supplied Contents	-	Board(s)
Type	-	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
Utilized IC / Part	EM3587	EM3587
Voltage - Supply [Max]	4.7 V	3.6 - 4.7 V
Voltage - Supply [Min]	3.3 V	1.8 - 3.3 V

RF TXRX MOD BLUETOOTH CHIP SMD

Part	Utilized IC / Part	Mounting Type	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Package / Case	Data Rate	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Modulation	Current - Receiving	Power - Output	Current - Transmitting	Frequency	Sensitivity	Serial Interfaces	Supplied Contents	Type	For Use With/Related Products	Frequency [Min]	Frequency [Max]
Sierra Wireless BC118_1103394	EM3587	Surface Mount	Bluetooth	4.7 V	3.3 V	512 MB	Module	270 kbps	Integrated, Chip	85 °C	-40 °C	Bluetooth v4.0	DPSK, DQPSK, GFSK	16 mA	7.5 dBm	16 mA	2.4 GHz	-92.5 dBm	I2C, UART, USB
Sierra Wireless BC118-DISKIT001																	2.4 GHz			Board(s)	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)	BC118
Sierra Wireless BC118_1103396		Surface Mount	Bluetooth	3.6 V	1.8 V		Module	270 kbps	Integrated, Trace	85 °C	-40 °C	Bluetooth v4.1	8PSK, GFSK, QPSK	16 mA	7.5 dBm	16 mA		-92.5 dBm	I2C, UART, USB				2.4 GHz	2.48 GHz
