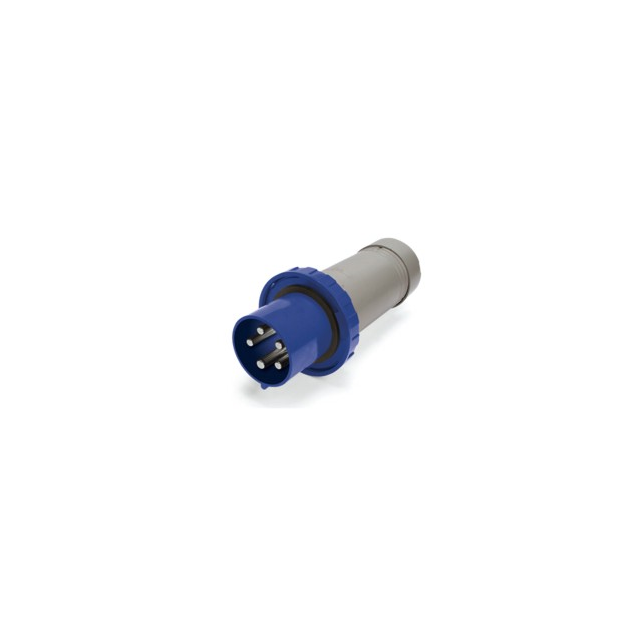

560P9W

Active

Power Dynamics, Inc.

AC PLUG PIN & SLEEVE

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

AC PLUG PIN & SLEEVE

Technical Specifications

Parameters and characteristics for this part

Specification	560P9W

Approval Agency	cULus, UL
Connector Style	Pin and Sleeve (4P5W)
Connector Type	Plug, Male Pins
Current Rating (Amps)	60 A
Features	Strain Relief, Impact Resistant, Chemical Resistant, Cord Grip, Push-Twist Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Termination	Screw
Voltage Rating [Max]	208 VAC
Voltage Rating [Min]	120 VAC

AC PLUG PIN & SLEEVE

Part	Voltage Rating [Max]	Voltage Rating [Min]	Termination	Mounting Type	Features	Current Rating (Amps)	Approval Agency	Ingress Protection	Connector Style	Connector Type
Power Dynamics, Inc. 560P9W	208 VAC	120 VAC	Screw	Free Hanging (In-Line)	Chemical Resistant, Cord Grip, Impact Resistant, Push-Twist Lock, Strain Relief	60 A	cULus, UL	IP67 - Dust Tight, Waterproof	Pin and Sleeve (4P5W)	Male Pins, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Plug, Male Pins Pin and Sleeve (4P5W) Free Hanging (In-Line)
