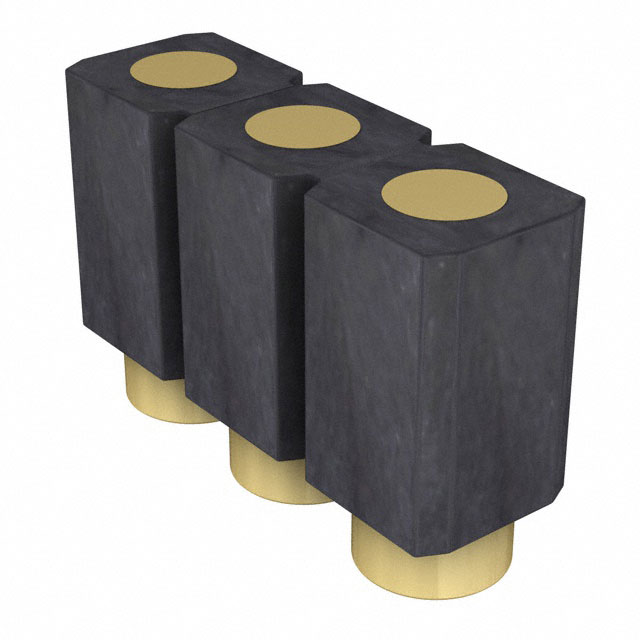

Specification	800-10-003-30-507191

Connector Type	Mating Target
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Material	Brass
Mounting Type	Surface Mount
Number of Contacts	3
Number of Rows	1
Pitch	0.1 in

800-10 Series

...

Part	Contact Finish Thickness - Mating	Number of Rows	Number of Positions Loaded	Contact Shape	Number of Positions	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Length - Mating	Shrouding	Contact Type	Current Rating	Fastening Type	Contact Finish - Post	Insulation Height	Material Flammability Rating	Insulation Color	Pitch - Mating	Termination	Insulation Material	Mounting Type	Style	Connector Type	Voltage Rating	Contact Material	Contact Finish Thickness - Post	Overall Contact Length	Contact Length - Post	Features
Preci-Dip 800-10-002-40-001191	10 µin	1	All	Circular	2	Gold	125 °C	-55 °C	0.191 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.1 in	UL94 V-0	Black	0.1 in	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Right Angle Surface Mount	Board	Header	150 VDC	Brass	10 µin
Preci-Dip 800-10-013-10-002101	10 µin	1	All	Circular	13	Gold	125 °C	-55 °C	0.141 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.116 in	UL94 V-0	Black	0.1 in	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Board	Header	150 VDC	Brass	10 µin	0.385 in	0.118 in
Preci-Dip 800-10-036-20-001101	10 µin	1	All	Circular	36	Gold	125 °C	-55 °C	0.195 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.1 in	UL94 V-0	Black	0.1 in	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Right Angle Through Hole	Board	Header	150 VDC	Brass	10 µin		0.126 in
Preci-Dip 800-10-004-30-480101	10 µin	1	All	Circular	4	Gold	125 °C	-55 °C	0.141 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.11 in	UL94 V-0	Black	0.1 in	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Surface Mount	Board	Header	150 VDC	Brass	10 µin
Preci-Dip 800-10-002-20-004101	10 µin	1	All	Circular	2	Gold	125 °C	-55 °C	0.195 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.1 in	UL94 V-0	Black	0.1 in	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Right Angle Through Hole	Board	Header	150 VDC	Brass	10 µin		0.126 in
Preci-Dip 800-10-010-30-001191	10 µin	1	All	Circular	10	Gold	125 °C	-55 °C	0.191 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.116 in	UL94 V-0	Black	0.1 in	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Surface Mount	Board	Header	150 VDC	Brass	10 µin			Pick and Place
Preci-Dip 800-10-044-40-001101	10 µin	1	All	Circular	44	Gold	125 °C	-55 °C	0.191 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.1 in	UL94 V-0	Black	0.1 in	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Right Angle Surface Mount	Board	Header	150 VDC	Brass	10 µin
Preci-Dip 800-10-063-30-480101	10 µin	1	All	Circular	63	Gold	125 °C	-55 °C	0.141 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.11 in	UL94 V-0	Black	0.1 in	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Surface Mount	Board	Header	150 VDC	Brass	10 µin
Preci-Dip 800-10-031-10-001101	10 µin	1	All	Circular	31	Gold	125 °C	-55 °C	0.191 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.116 in	UL94 V-0	Black	0.1 in	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Board	Header	150 VDC	Brass	10 µin	0.438 in	0.121 in
Preci-Dip 800-10-002-66-001101	10 µin	1	All	Circular	2	Gold	125 °C	-55 °C	0.191 in	Unshrouded	Male Pin	3 A	Push-Pull	Gold	0.116 in	UL94 V-0	Black	0.1 in	Press-Fit Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Board	Header	150 VDC	Bronze	10 µin	0.467 in	0.15 in
