EPL.00.250.NTN
ActiveLEMO

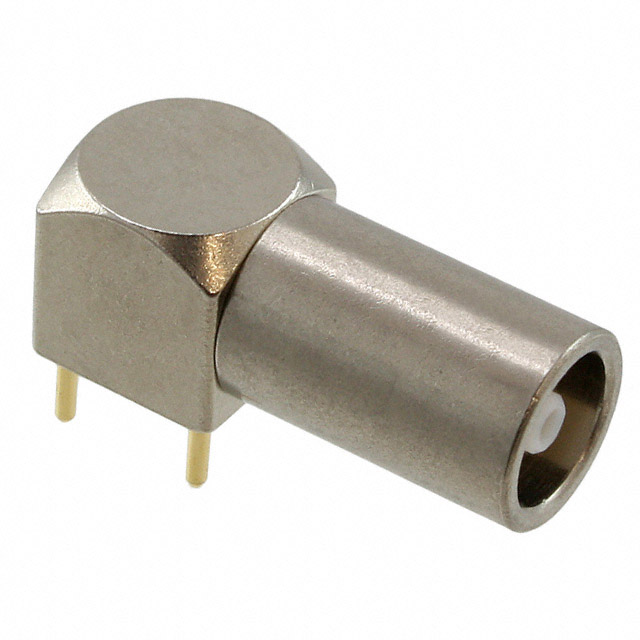

CONN NIMCAMAC RCPT R/A 50OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPL.00.250.NTN
ActiveLEMO
CONN NIMCAMAC RCPT R/A 50OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EPL.00.250.NTN | EPL.00.250 Series |
|---|---|---|
| Body Finish | Nickel | Nickel, Gold |
| Body Material | Brass | Brass |
| Center Contact Material | Bronze | Bronze |
| Center Contact Plating | Gold | Gold |
| Connector Style | NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549 |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket, Male Pin |
| Contact Termination | Solder | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | Silver | Silver, Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Ingress Protection | IP50 | IP50 |
| Mating Cycles | 5000 | 5000 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 260 ░C | 260 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 700 VDC | 700 VDC |
EPL.00.250 Series
CONN R/A PCB RCPT COAX SKT
| Part | Fastening Type | Contact Termination | Mounting Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Voltage Rating | Impedance | Center Contact Plating | Dielectric Material | Connector Type | Center Contact Material | Shield Termination | Connector Style | Body Material | Housing Color | Number of Ports | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EPL.00.250.RTN | Push-Pull | Solder | Through Hole, Right Angle | IP50 | -55 °C | 260 ░C | 5000 | 700 VDC | 50 Ohms | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | Bronze | Solder | NIM-CAMAC CD/N 549 | ||||
LEMO EPL.00.250.NTN | Push-Pull | Solder | Through Hole, Right Angle | IP50 | -55 °C | 260 ░C | 5000 | 700 VDC | 50 Ohms | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | Bronze | Solder | NIM-CAMAC CD/N 549 | Brass | Silver | 1 | Nickel |
LEMO EPL.00.250.DTN | Push-Pull | Solder | Through Hole, Right Angle | IP50 | -55 °C | 260 ░C | 5000 | 700 VDC | 50 Ohms | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | Bronze | Solder | NIM-CAMAC CD/N 549 | Brass | Gold | 1 | Gold |
LEMO EPL.00.250.NTD | Push-Pull | Solder | Through Hole, Right Angle | IP50 | -55 °C | 260 ░C | 5000 | 700 VDC | 50 Ohms | Gold | Polytetrafluoroethylene (PTFE) | Male Pin, Receptacle | Bronze | Solder | NIM-CAMAC CD/N 549 | Brass | Silver | 1 | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.34 | |
| 10 | $ 18.68 | |||
| 25 | $ 17.88 | |||
| 50 | $ 17.30 | |||
| 100 | $ 16.72 | |||
| 250 | $ 15.80 | |||
| 500 | $ 15.34 | |||
Description
General part information
EPL.00.250 Series
NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
