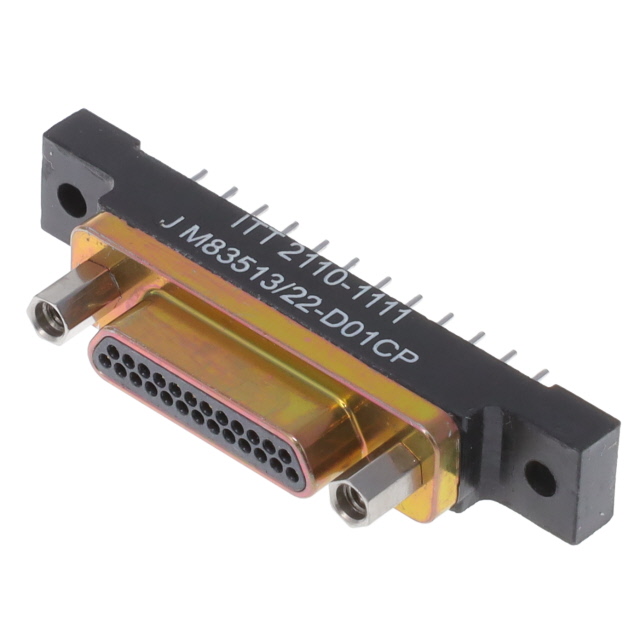

M83513/22-D01CP
25 Position D-Type, Micro-D Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/22-D01CP |
|---|---|
| Connector Layout Pitch | 0.05 |
| Connector Layout Row to Row | 0.043 |
| Connector Style | Micro-D, D-Type |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Type | Signal |
| Current Rating | 3 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Finish | Yellow Chromate Plated Cadmium |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material | Aluminum |
| Termination | Solder |
