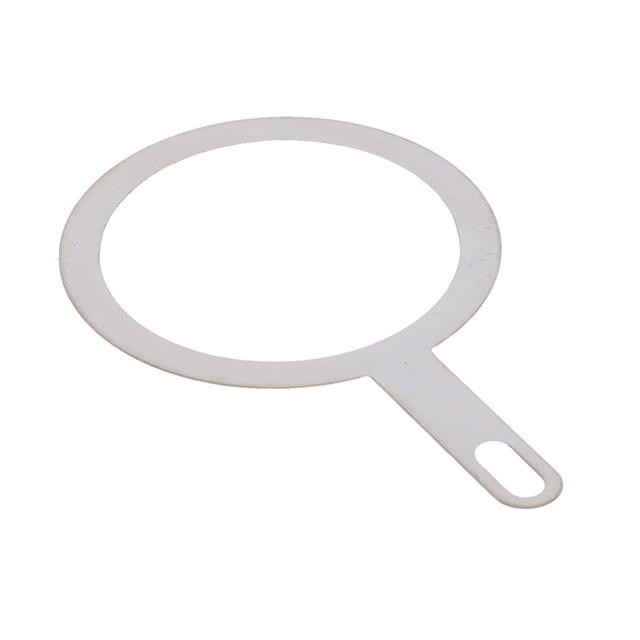

GCA.2E.255.LT

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS GROUNDING LUG

Search across all available documentation for this part.

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS GROUNDING LUG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GCA.2E.255.LT	2E Series

Accessory Type	Earthing, Washer	Cap (Cover), Earthing, Washer
Backshell Material, Plating	-	Brass, Chrome
Cable Opening	-	0.22 - 0.236 in
Cable Opening	-	5.6 - 6 mm
Color	-	Silver
Connector Type	-	Male Pins, Plug, Female Sockets
Contact Finish - Mating	-	Gold
Contact Material	-	Bronze, Brass
Current Rating (Amps)	-	9 - 12 A
Fastening Type	-	Push-Pull
Features	-	Backshell, Dust Tight, Waterproof, Lanyard
For Use With/Related Products	2K Series Connector, 2E	2E Series Plug, 2K Series Connector, 2E
Ingress Protection	-	IP66/IP68
Insert Material	-	Polyetheretherketone (PEEK)
Material	Brass	Brass
Material Flammability Rating	-	UL94 V-0
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	-	7
Operating Temperature	-	-55 °C
Operating Temperature	-	200 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	307
Shielding	-	Shielded

Circular Push Pull Connectors GROUNDING LUG

Part	Contact Finish - Mating	Ingress Protection	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Backshell Material, Plating	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Color	Number of Positions	Material Flammability Rating	Features	Orientation	Shielding	Shell Material	Insert Material	Contact Material	Primary Material	Fastening Type	Current Rating (Amps)	Connector Type	For Use With/Related Products	Accessory Type	Material
LEMO FFA.2E.307.CLAC60Z	Gold	IP66/IP68	Chrome	-55 °C	200 °C	307	Brass, Chrome	Free Hanging (In-Line)	0.22 in, 0.236 in	5.6 mm, 6 mm	Silver	7	UL94 V-0	Backshell	Keyed	Shielded	Brass	Polyetheretherketone (PEEK)	Brass, Bronze	Metal	Push-Pull	9 A, 12 A	Female Sockets, Male Pins, Plug
LEMO BFA.2E.100.NAS											Silver			Dust Tight, Lanyard, Waterproof										2E Series Plug	Cap (Cover)	Brass
LEMO GCA.2E.255.LT																								2E, 2K Series Connector	Earthing, Washer	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Push Pull Connectors GROUNDING LUG
