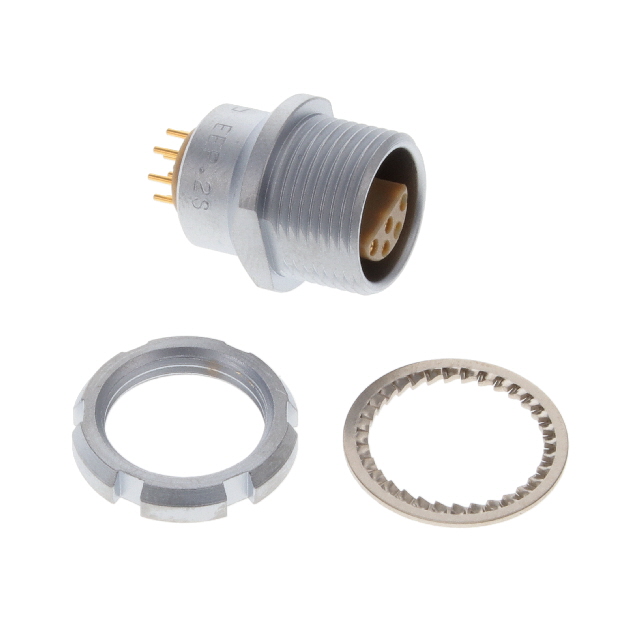

EEP.2S.310.CLN
ActiveLEMO
CONN CIRC RCPT 10POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EEP.2S.310.CLN
ActiveLEMO
CONN CIRC RCPT 10POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EEP.2S.310.CLN | EEP.2S Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Female Sockets, Male Pins, Receptacle | Female Sockets, Male Pins, Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze, Brass | Bronze, Brass |
| Current Rating (Amps) | 7 A | 6 - 7 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 10 | 8 - 10 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 310 | 308 - 310 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
EEP.2S Series
CONN CIRC RCPT 10POS GOLD SOLDER
| Part | Shell Material | Insert Material | Termination | Fastening Type | Shell Size - Insert | Mounting Type | Color | Contact Finish - Mating | Primary Material | Orientation | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Connector Type | Current Rating (Amps) | Ingress Protection | Shielding | Mounting Feature | Material Flammability Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EEP.2S.310.CLN | Brass | Polyetheretherketone (PEEK) | Solder | Push-Pull | 310 | Panel Mount, Through Hole | Silver | Gold | Metal | Keyed | Chrome | -55 °C | 250 °C | Brass, Bronze | Female Sockets, Male Pins, Receptacle | 7 A | IP50 | Shielded | Bulkhead - Front Side Nut | UL94 V-0 | 10 |
LEMO EEP.2S.308.CLV | Brass | Polyetheretherketone (PEEK) | Solder | Push-Pull | 308 | Panel Mount, Right Angle, Through Hole | Silver | Gold | Metal | Keyed | Chrome | -55 °C | 250 °C | Brass, Bronze | Female Sockets, Male Pins, Receptacle | 6 A | IP50 | Shielded | Bulkhead - Front Side Nut | UL94 V-0 | 8 |
LEMO EEP.2S.310.CLL | Brass | Polyetheretherketone (PEEK) | Push-Pull | 310 | Silver | Gold | Metal | Keyed | Chrome | -55 °C | 250 °C | Brass, Bronze | Female Sockets, Male Pins, Receptacle | 7 A | IP50 | Shielded | Bulkhead - Front Side Nut | UL94 V-0 | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 57.06 | |
| 10 | $ 52.36 | |||
| 25 | $ 50.34 | |||
| 50 | $ 48.67 | |||
| 100 | $ 45.98 | |||
Description
General part information
EEP.2S Series
10 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder
