35604000029
ActiveLITTELFUSE

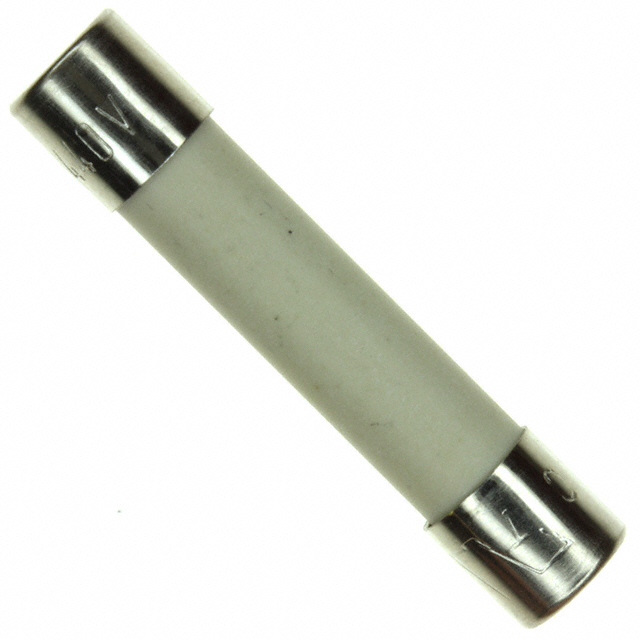

FUSE CARTRIDGE SLOW BLOW ACTING 0.4A 440V HOLDER CARTRIDGE 6.35 X 31.75MM CERAMIC UKCA/CULUS
35604000029
ActiveLITTELFUSE
FUSE CARTRIDGE SLOW BLOW ACTING 0.4A 440V HOLDER CARTRIDGE 6.35 X 31.75MM CERAMIC UKCA/CULUS
Description
General part information
35604000029
400 mA 440 V AC DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Technical Specifications
Parameters and characteristics for this part
| Specification | 35604000029 |
|---|---|
| Approval Agency | CE |
| Breaking Capacity | 1 kA |
| Current Rating | 400 mA |
| DC Cold Resistance | 1.95 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 0.16 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 3AG, 1/4" x 1-1/4", 3AB |
| Package Diameter | 0.25 in |
| Package Length | 1.25 in |
| Package Name | 3AB, 3AG |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.248 in |
| Size / Dimension Length | 1.26 in |
| Voltage Rating - AC | 440 V |
