Description
General part information

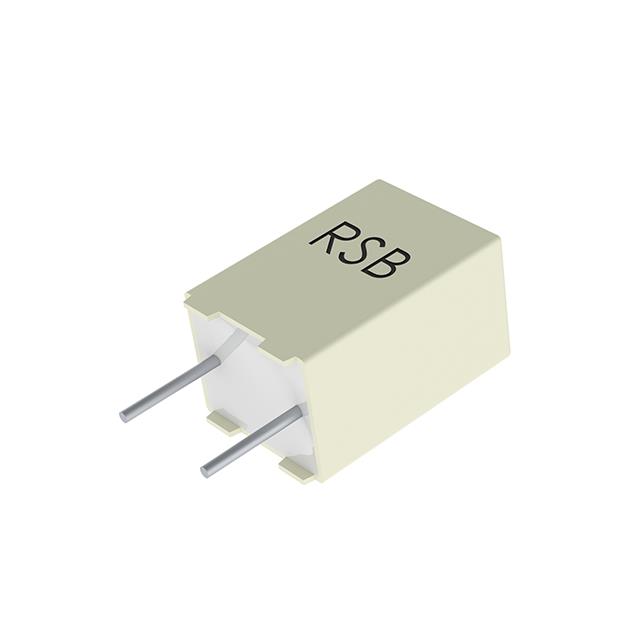

RSBIC3100Z300K
0.1 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | RSBIC3100Z300K |
|---|---|
| Applications | Automotive |
| Capacitance | 0.1 µF |
| Dielectric Material | Metallized - Stacked, Polyester, Polyethylene Terephthalate (PET) |
| Features | High Temperature |
| Height - Seated (Max) | 0.398 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.197 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 VDC |
