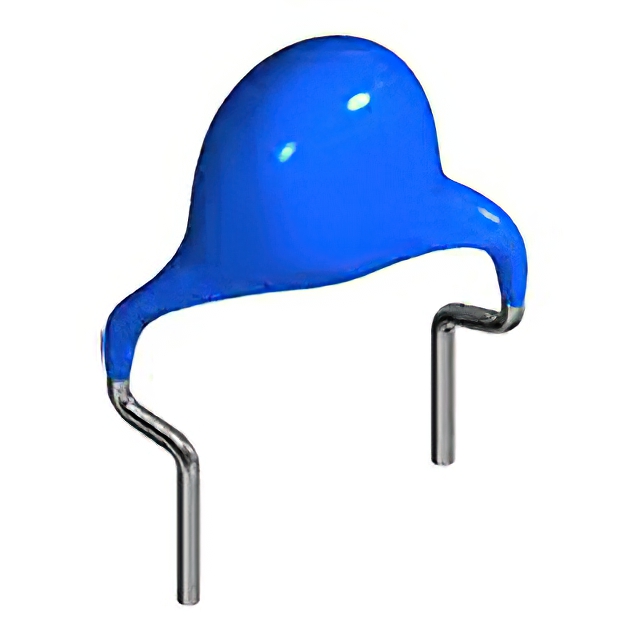

CC45SL3DD390JYNNA
ActiveTDK Corporation
CAPACITOR, CERAMIC DISC, 39PF, 2KV, RAD ROHS COMPLIANT: YES
CC45SL3DD390JYNNA
ActiveTDK Corporation
CAPACITOR, CERAMIC DISC, 39PF, 2KV, RAD ROHS COMPLIANT: YES
Description
General part information
CC45SL3DD390JYNNA
39 pF ±5% 2000V (2kV) Ceramic Capacitor SL Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CC45SL3DD390JYNNA |
|---|---|
| Applications | General Purpose |
| Capacitance | 39 pF |
| Features | Low Dissipation Factor, High Voltage |
| Height - Seated (Max) | 0.374 in |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.217 in |
| Temperature Coefficient | SL |
| Tolerance | 5 % |
| Voltage - Rated | 2000 VAC |
