1122-4-PH
ActiveRAF Electronic Hardware
1/4 RD X 1/8 X 0.115
Deep-Dive with AI
Search across all available documentation for this part.
1122-4-PH
ActiveRAF Electronic Hardware
1/4 RD X 1/8 X 0.115
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1122-4-PH |
|---|---|
| Between Board Height | 0.125 in |
| Between Board Height | 3.18 mm |
| Between Board Height | 0.125 in |
| Diameter - Inside [diameter] | 0.115 in |
| Diameter - Inside [diameter] | 2.92 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Female |
| Length - Overall | 0.125 " |
| Length - Overall | 3.18 mm |
| Length - Overall | 0.125 " |
| Material | Phenolic |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.16 | |
| 5 | $ 0.96 | |||
| 10 | $ 0.87 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.68 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.58 | |||
Description
General part information
1122-4-PH

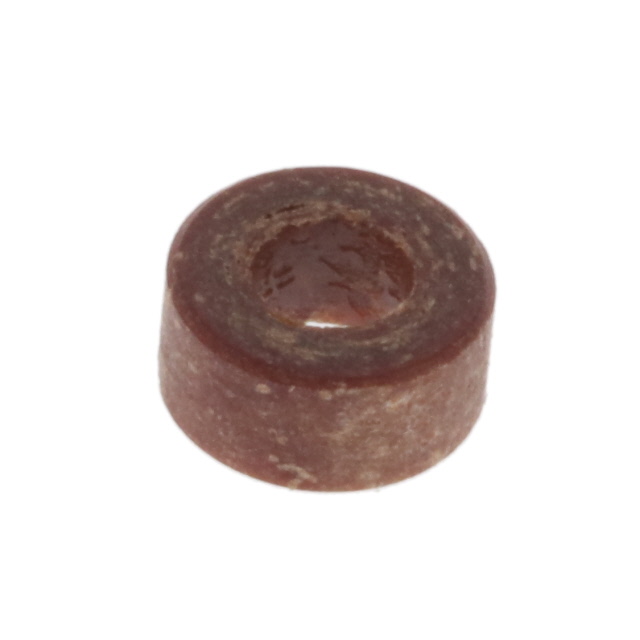

Round Spacer Unthreaded Phenolic 0.125" (3.18mm) 1/8"
