47-25206-W
ActiveNTE Electronics, Inc
H/S 1/4IN 6IN WHITE DUAL
47-25206-W
ActiveNTE Electronics, Inc
H/S 1/4IN 6IN WHITE DUAL
Description
General part information
47-25206-W

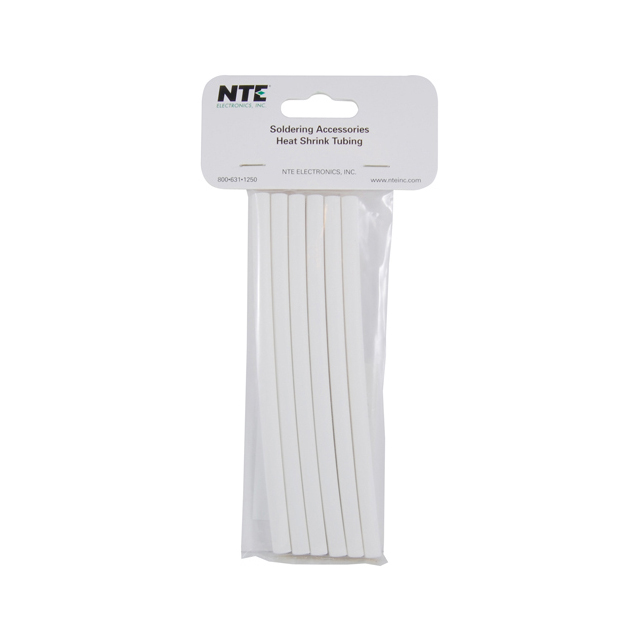

Heat Shrink Tubing, Flexible 0.250" (6.35mm) 3 to 1 White 0.500' (152.40mm, 6.00")
Technical Specifications
Parameters and characteristics for this part
| Specification | 47-25206-W |
|---|---|
| Color | White |
| Features | Fluid Resistant, Flame Retardant, Adhesive Lined |
| Inner Diameter - Recovered | 0.079 in |
| Inner Diameter - Supplied | 0.25 in |
| Length | 0.5 ft |
| Material | Polyolefin (PO) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Recovered Wall Thickness | 0.019 in |
| Shrink Temperature | 110 °C |
| Shrinkage Ratio | 3 |
| Type | Flexible, Tubing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
