Technical Specifications
Parameters and characteristics for this part
| Specification | 805-003-01MT21-201AD |
|---|---|
| Connector Type | Plug Housing |
| Contact Size | 8, 23 |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Ingress Protection | Environment Sealed |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 46 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | D |
| Shell Finish | Ni, PTFE |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 201 |
| Shell Size - Insert (Minimum) | 21 |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 3859.13 | <6d |
| 5 | $ 3704.76 | |||
| 10 | $ 3550.40 | |||
| 25 | $ 3396.03 | |||
CAD
3D models and CAD resources for this part
Description
General part information

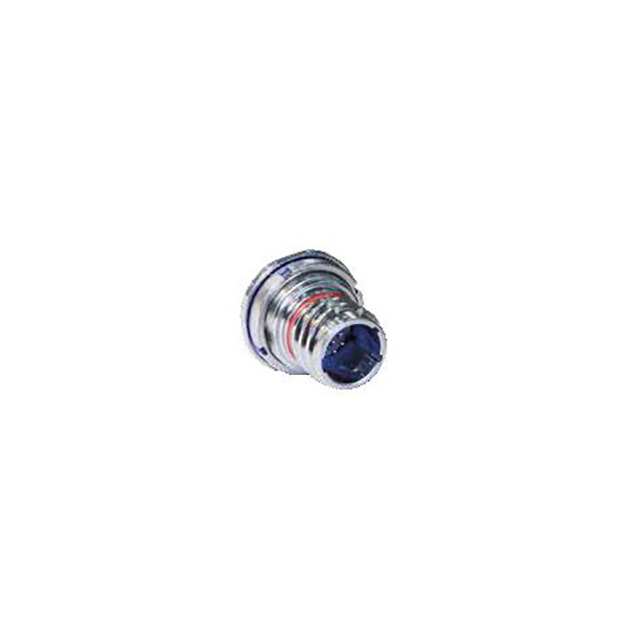

805-003-01MT21-201AD
46 Position Circular Connector Plug Housing Free Hanging (In-Line)
