977

Active

Keystone Electronics

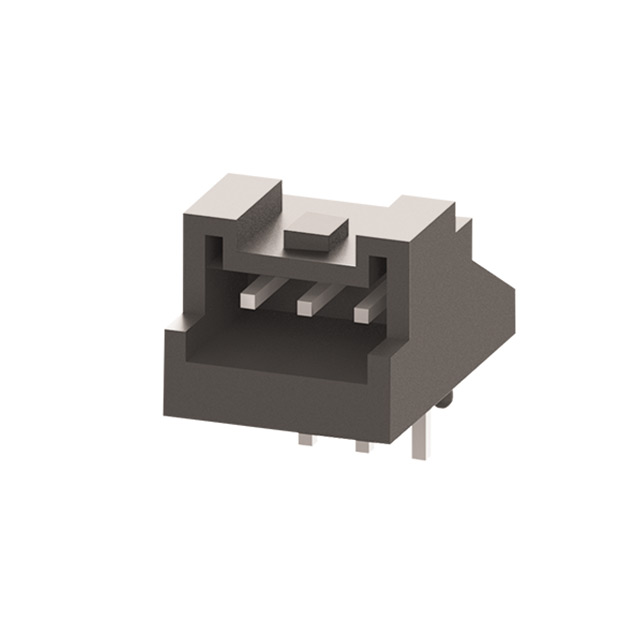

CONN HEADER R/A 3POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

977

Active

Keystone Electronics

CONN HEADER R/A 3POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.23
		25	$ 1.21
		100	$ 1.19
		250	$ 1.11
		500	$ 0.99
		1000	$ 0.70
		2500	$ 0.62

Description

General part information

- Series

Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	977	- Series

Actuator Height off PCB, Vertical	-	0.55 - 0.75 mm
Actuator Height off PCB, Vertical	-	0.5 - 0.8 mm
Actuator Orientation	-	Top Actuated
Actuator Type	-	Snap Dome
Body Finish	-	Nickel
Body Material	-	Brass
Cable Termination	-	Crimp
Center Contact Material	-	Phosphor Bronze
Center Contact Plating	-	Tin
Circuit	-	SPST-NO
Connector Style	-	F Type
Connector Type	Header	Socket to Cable, Header, Female Socket, Jack
Contact Finish - Post	Tin	Tin
Contact Length - Post	-	0.118 in
Contact Length - Post	-	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Rating @ Voltage	-	0.012 - 24 A
Contact Shape	Square	Square
Contact Termination	-	Solder
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Board Guide	Polarizing Key, Flex Membrane, Board Guide
Housing Color	-	Silver
Illumination	-	Non-Illuminated
Includes	-	Connector, Washer, Nut
Insulation Color	Natural	Natural
Insulation Height	-	0.224 - 0.303 in
Insulation Height	-	5.69 - 7.7 mm
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Length	-	152.4 mm
Length	-	6 "
Length	-	0.5 '
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	-	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Right Angle	Surface Mount, Through Hole, Right Angle, Through Hole, Surface Mount, Right Angle
Number of Ports	-	1
Number of Positions	-	8
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Force	-	220 - 420 gf
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Outline	-	7 - 9.9 mm
Outline	-	7 - 9.9 mm
Pitch - Connector	-	0.05 in
Pitch - Connector	-	1.27 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shield Termination	-	Solder
Shielding	-	Unshielded
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Switch Function	-	Off-Mom
Termination	Solder	Solder, Press-Fit
Termination Style	-	SMD (SMT) Tab
Voltage Rating	250 VDC	250 VDC

- Series

8 PIN CONNECTOR

Part	Number of Rows	Cable Termination	Shielding	Length	Length	Length	Features	Number of Positions	Connector Type	Pitch - Connector	Pitch - Connector	Termination Style	Circuit	Actuator Type	Operating Force	Actuator Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]	Illumination	Switch Function	Contact Rating @ Voltage	Mounting Type	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical	Number of Positions Loaded	Contact Type	Contact Material	Fastening Type	Contact Shape	Material Flammability Rating	Voltage Rating	Termination	Contact Finish - Post	Insulation Color	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Style	Insulation Material	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Ports	Body Material	Shield Termination	Contact Termination	Includes	Center Contact Plating	Mounting Feature	Housing Color	Body Finish	Connector Style	Center Contact Material
Keystone Electronics 961H	1	Crimp	Unshielded	152.4 mm	6 "	0.5 '	Polarizing Key	8	Socket to Cable	0.05 in	1.27 mm
Keystone Electronics 5175							Flex Membrane					SMD (SMT) Tab	SPST-NO	Snap Dome	340 gf	Top Actuated	-40 °C	105 ░C	0.75 mm	Non-Illuminated	Off-Mom	0.012 A, 24 VDC	Surface Mount	9.9 mm	9.9 mm
Keystone Electronics 5155							Flex Membrane					SMD (SMT) Tab	SPST-NO	Snap Dome	340 gf	Top Actuated	-40 °C	105 ░C		Non-Illuminated	Off-Mom	0.012 A, 24 VDC	Surface Mount	8.4 mm	8.4 mm	0.6 mm
Keystone Electronics 977	1						Board Guide		Header														Through Hole, Right Angle				All	Male Pin	Copper Alloy	Latch Holder	Square	UL94 V-0	250 VDC	Solder	Tin	Natural	3 A	0.079 in	2 mm	Shrouded - 4 Wall	Board to Cable/Wire	Polyamide (PA66), Nylon 6/6
Keystone Electronics 5154							Flex Membrane					SMD (SMT) Tab	SPST-NO	Snap Dome	280 gf	Top Actuated	-40 °C	105 ░C	0.55 mm	Non-Illuminated	Off-Mom	0.012 A, 24 VDC	Surface Mount	8.4 mm	8.4 mm
Keystone Electronics 5176							Flex Membrane					SMD (SMT) Tab	SPST-NO	Snap Dome	420 gf	Top Actuated	-40 °C	105 ░C		Non-Illuminated	Off-Mom	0.012 A, 24 VDC	Surface Mount	9.9 mm	9.9 mm	0.8 mm
Keystone Electronics 5156							Flex Membrane					SMD (SMT) Tab	SPST-NO	Snap Dome	400 gf	Top Actuated	-40 °C	105 ░C		Non-Illuminated	Off-Mom	0.012 A, 24 VDC	Surface Mount	8.4 mm	8.4 mm	0.8 mm
Keystone Electronics 5134							Flex Membrane					SMD (SMT) Tab	SPST-NO	Snap Dome	280 gf	Top Actuated	-40 °C	105 ░C		Non-Illuminated	Off-Mom	0.012 A, 24 VDC	Surface Mount	7 mm	7 mm	0.5 mm
Keystone Electronics 975	1						Board Guide		Header														Through Hole				All	Male Pin	Copper Alloy	Latch Holder	Square	UL94 V-0	250 VDC	Press-Fit, Solder	Tin	Natural	3 A	0.079 in	2 mm	Shrouded - 4 Wall	Board to Cable/Wire	Polyamide (PA66), Nylon 6/6	0.303 in	7.7 mm	0.118 in	3 mm
Keystone Electronics 912									Female Socket, Jack																																						1	Brass	Solder	Solder	Connector, Nut, Washer	Tin	Bulkhead - Rear Side Nut	Silver	Nickel	F Type	Phosphor Bronze
