826-161/000-016
ActiveWAGO Corporation
FEEDTHROUGH TERMINAL BLOCK; 4 MM
826-161/000-016
ActiveWAGO Corporation
FEEDTHROUGH TERMINAL BLOCK; 4 MM
Description
General part information
826-161/000-016

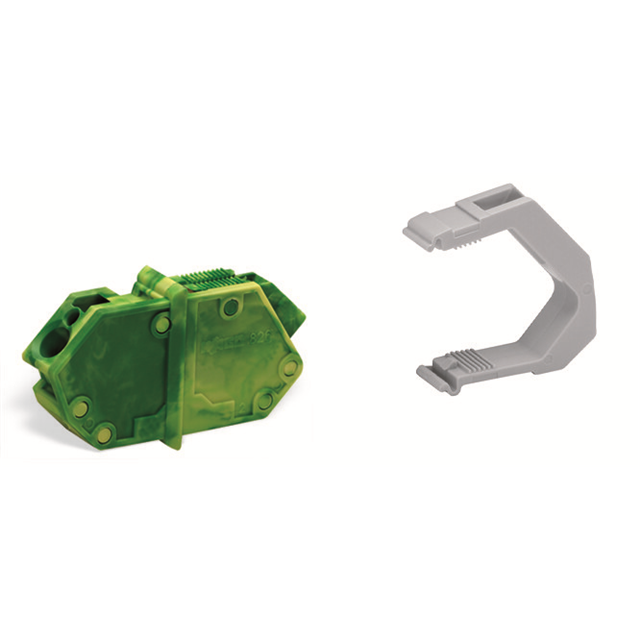

1 Position Terminal Block Push In Clamp - Wire Entry Angled to Panel Green, Yellow
Technical Specifications
Parameters and characteristics for this part
| Specification | 826-161/000-016 |
|---|---|
| Color | Yellow, Green |
| Current - UL | 20 A |
| Front Panel Wire Connection (Method) | Push In Clamp |
| Front Panel Wire Connection (Wire Entry Orientation) | Wire Entry Angled to Panel |
| Number of Levels | 1 |
| Panel Mount Count | 2 Piece |
| Panel Mount Type | 2 Piece |
| Panel Thickness (Max) | 0.157 in |
| Panel Thickness (Min) | 0.039 in |
| Positions Per Level | 1 |
| Rear Panel Wire Connection | Push In Clamp |
| Rear Panel Wire Entry Orientation | Angled to Panel |
| Voltage - UL | 300 V |
| Width | 0.276 in |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
