Description
General part information

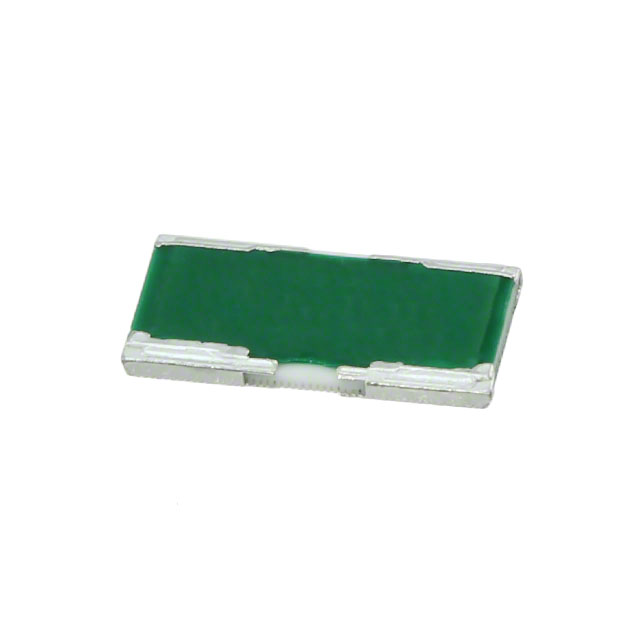

LVK25R001FER
1 mOhms ±1% 2W Chip Resistor Wide 2512 (6432 Metric), 1225 Anti-Corrosive, Current Sense, Moisture Resistant Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | LVK25R001FER |
|---|---|
| Composition | Thick Film |
| Features | Moisture Resistant, Anti-Corrosive, Current Sense |
| Height - Seated (Max) | 0.028 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Package Name | 1224 |
| Power (Watts) | 2 w |
| Resistance | 1 mOhms |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.252 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 1 % |
