Description

General part information

RX600 Series

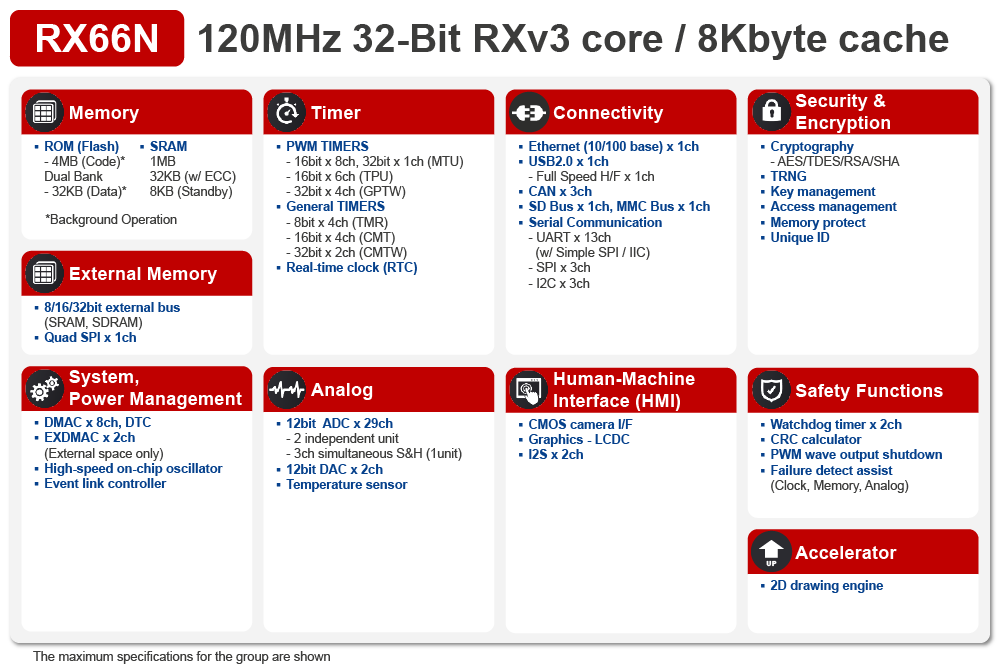

The RX66N Group microcontrollers feature flash memory that can be read with zero wait states from the CPU, delivering superior real-time performance. They are equipped with the third-generation RX CPU core, the RXv3 core, and these high-performance products operate at 120MHz. Real-time control and networking of equipment are realized with a single chip with 4MB flash memory capable of read operations at 120MHz, 1MB of SRAM and 182 general-purpose I/O ports. The device also supports high-end HMI functionality for advanced display capability. The device also has complete security capability, vital for industrial and consumer equipment today. The RX66N can also contribute to the miniaturization of the housing and the shortening of the development cycle.

Technical Specifications

Parameters and characteristics for this part

Specification	R5F566NDDGFP#30

A/D Channels	22 count
A/D Resolution (bits)	12 bit
Connectivity	CANbus, EMI, I2C, QSPI, MMC, SPI, EBI, SSI, SCI, SD, USB OTG, Ethernet
Core Processor	RXv3
Core Size (Bit Width)	32 Bit
D/A Channels	1 count
D/A Resolution (bits)	12 bit
EEPROM Size (Depth)	32 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	78
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal, External
Package / Case	100-LQFP
Package Length	14 mm
Package Name	100-LFQFP
Package Width	14 mm
Peripherals	WDT, DMA, LCD, POR, PWM, LVD
Program Memory Depth	2 M
Program Memory Size	2 MB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	1 M
RAM Size Width	8 bit
Speed	120 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	2.7 V

RX600 Series

...

Part	Connectivity	Program Memory Type	Speed	Core Processor	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	EEPROM Size (Width)	EEPROM Size (Depth)	Operating Temperature (Max)	Operating Temperature (Min)	Number of I/O	Core Size (Bit Width)	Mounting Type	RAM Size Width	RAM Size Depth	Peripherals	Oscillator Type	A/D Resolution (bits)	A/D Channels	Program Memory Size	Program Memory Width	Program Memory Depth	Package / Case	Package Width	Package Name	Package Length	Core Configuration
Renesas Electronics Corporation R5F56719HDFM#10	I2C LINbus QSPI SCI SPI USB	FLASH	120 MHz	RXv3	3.6 V	2.7 V	8 bit	8 K	85 °C	-40 °C	44	32 Bit	Surface Mount	8 bit	384 K	Capacitive Touch DMA LVD POR PWM WDT	Internal	12 bit	10 count	1 MB	8 bit	1 M	64-LQFP	10 mm	64-LFQFP	10 mm	Single-Core
Renesas Electronics Corporation R5F56719HDFP#10	CANbus I2C LINbus QSPI SCI SPI USB	FLASH	120 MHz	RXv3	3.6 V	2.7 V	8 bit	8 K	85 °C	-40 °C	80	32 Bit	Surface Mount	8 bit	384 K	Capacitive Touch DMA LVD POR PWM WDT	Internal	12 bit	16 count	1 MB	8 bit	1 M	100-LQFP	14 mm	100-LFQFP	14 mm	Single-Core
Renesas Electronics Corporation R5F56719HDFB#10	CANbus I2C LINbus QSPI SCI SPI USB	FLASH	120 MHz	RXv3	3.6 V	2.7 V	8 bit	8 K	85 °C	-40 °C	113	32 Bit	Surface Mount	8 bit	384 K	Capacitive Touch DMA LVD POR PWM WDT	Internal	12 bit	20 count	1 MB	8 bit	1 M	144-LQFP	20 mm	144-LFQFP	20 mm	Single-Core
Renesas Electronics Corporation R5F56719HGFB#10	CANbus I2C LINbus QSPI SCI SPI USB	FLASH	120 MHz	RXv3	3.6 V	2.7 V	8 bit	8 K	105 °C	-40 °C	113	32 Bit	Surface Mount	8 bit	384 K	Capacitive Touch DMA LVD POR PWM WDT	Internal	12 bit	20 count	1 MB	8 bit	1 M	144-LQFP	20 mm	144-LFQFP	20 mm	Single-Core
Renesas Electronics Corporation R5F56719DGFP#10	CANbus I2C LINbus QSPI SCI SPI USB	FLASH	120 MHz	RXv3	3.6 V	2.7 V	8 bit	8 K	105 °C	-40 °C	80	32 Bit	Surface Mount	8 bit	384 K	Capacitive Touch DMA LVD POR PWM WDT	Internal	12 bit	16 count	1 MB	8 bit	1 M	100-LQFP	14 mm	100-LFQFP	14 mm	Single-Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RX66N Group Datasheet

R5F566NDDGFP#30 | Datasheet

Datasheet
